Kitchen Electrostatic Precipitators

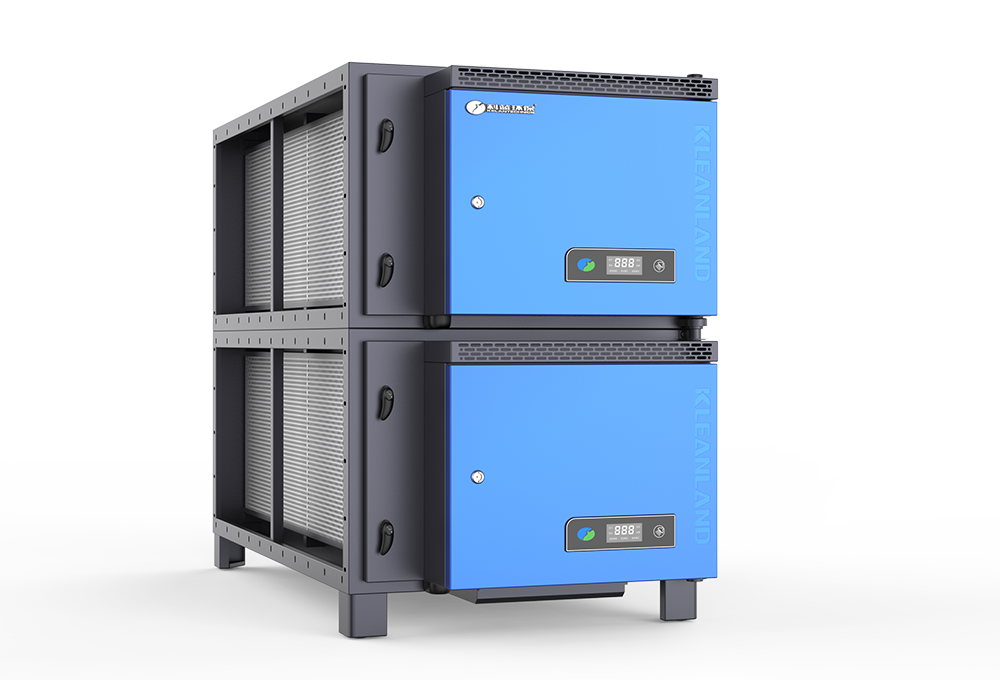

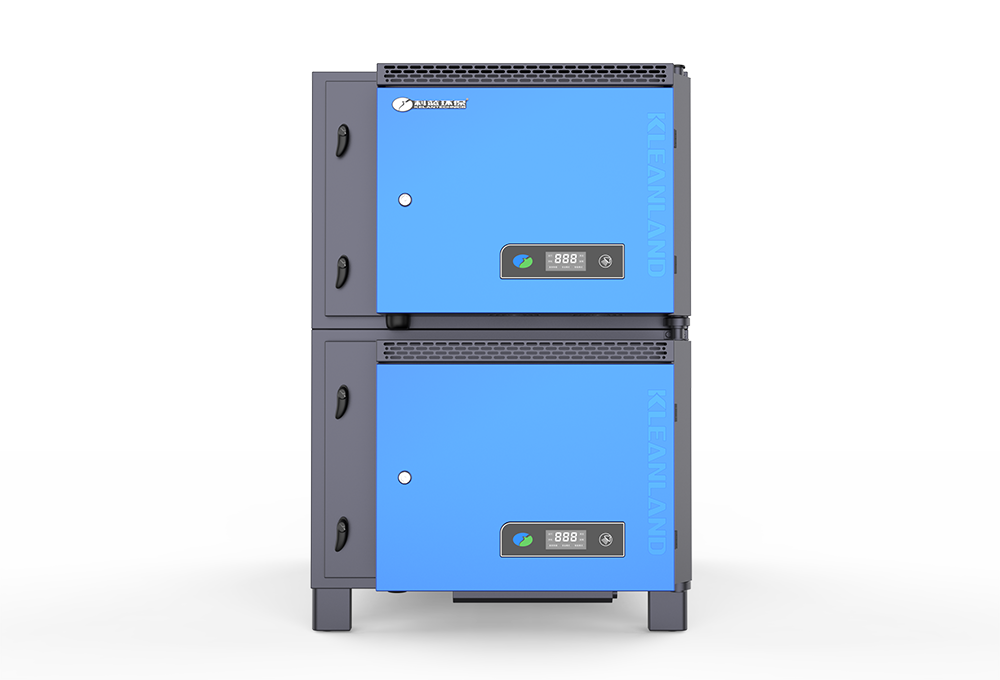

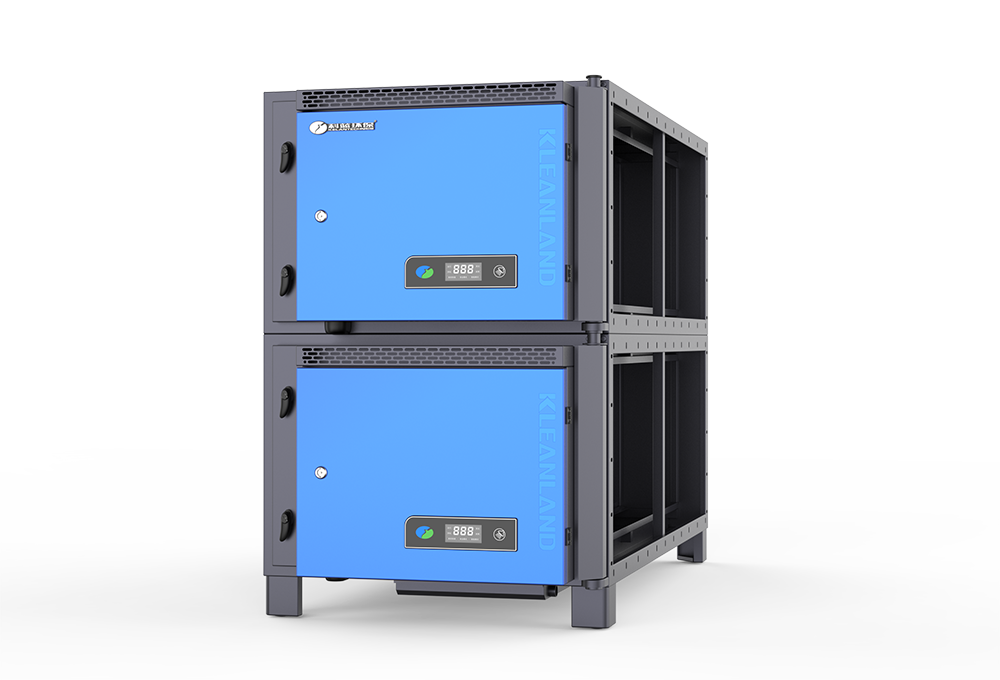

In-Duct Cooking Oil Smoke Electrostatic Precipitator Filter
Commercial Kitchen
Hotel
Cafeteria
Restaurants
BBQ
canteen
Kleanland duct type kitchen ESP filtration offers clean air for commercial kitchen
Cooking fumes contain harmful substances, including cytogenetic toxins, that can cause respiratory issues, lung damage, and weakened immunity, posing significant health risks to staff in restaurants, cafes, hotels, and catering services. Additionally, kitchen exhausts release grease, smoke, and odors, further reducing air quality. Kleanland in-duct ESP filter provides a solution by combining an electrostatic precipitator with optional UV and odor-controlling carbon filters. This system improves air quality, ensures a safe working environment, helps meet EPA and local regulations, and eliminates odors, benefiting employees, customers, and neighbors alike.

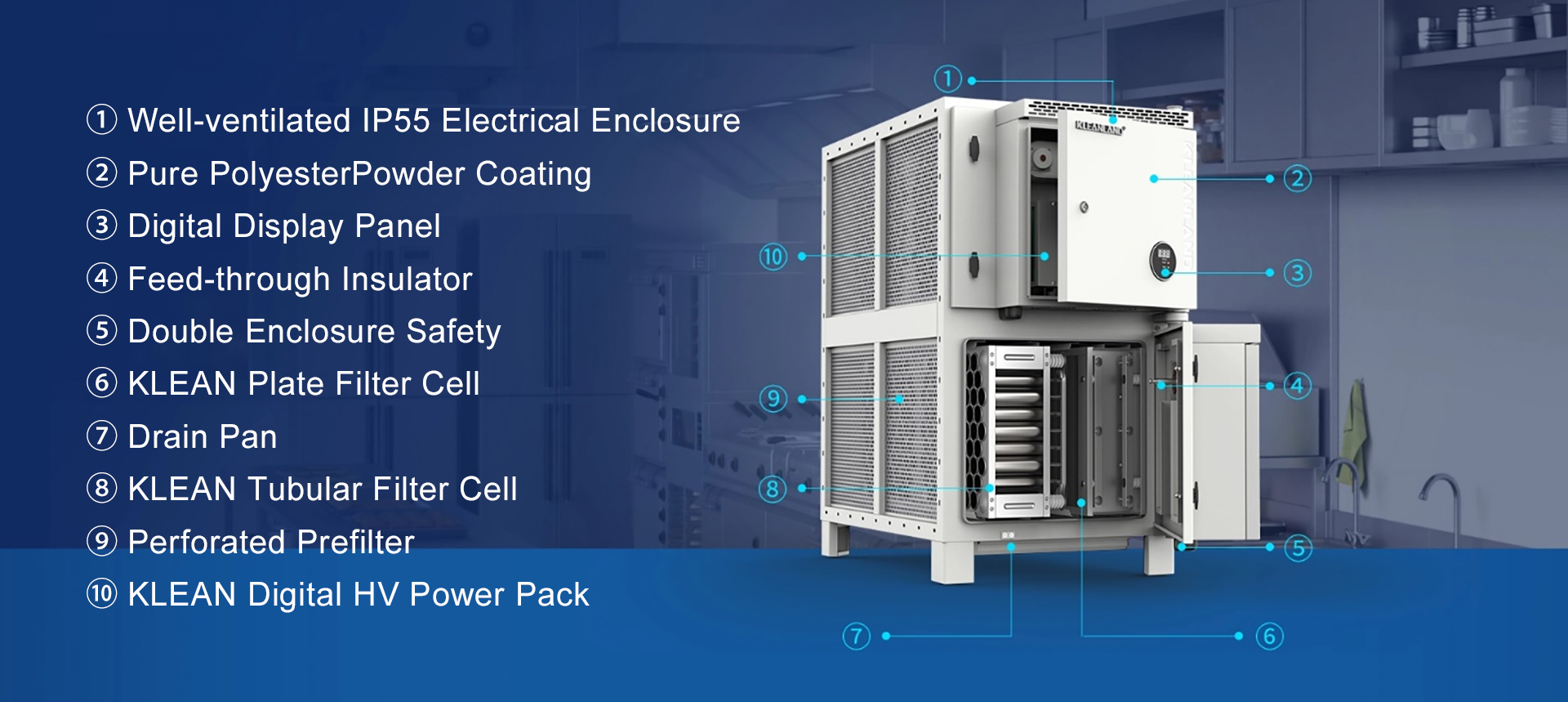

Latest ESP Filtration Solution for Commercial Kitchen
Since 1992, China first kitchen electrostatic precipitator was invented by Kleanland. Through 3 decades, Kleanland has become the no.1 brand of ESP filtration in China market. From scratch to finished product, Kleanland holds tightly to its commitment to quality and customer satisfaction.
Electrostatic Smoke Filtration, no Periodical Disposals
Kleanland commercial electrostatic precipitators are ideal in the collection of wet and dry particulates like dust, smoke, oil mist, cooking fumes and various contaminated particulates (PM 10~PM 0.5). Impurified air is drawn by the motor/blower, and passes through a washable mesh prefilter which traps large crumbs such as hairs, paper strips, etc. The remaining dust, some as small as 0.01 microns, pass into a intense electrified field (ionizing section) where the particulates receive an electrical charge. The charged particles then pass in-between collector plates or tubes which are oppositely charged. So, basing on the opposite charges attract each other. The particles would attract to the collection plates or collection tubes. Contaminants such as dust, smoke, oil mist are held in these plates until they are washed away. Kleanland initially launched steam auto wash for ESP range hood and in-duct ESP device. Simply by pressing wash button, ESP filtration cells get washed in minutes, and the ESP equipment can withstand normal function for all year long, in average working condition.
Prolonged Wash Cycle and Operation Life
Wider 25mm electrode spacing and SUS304 composition enable the tubular filter cell to endure higher voltage, heavier pollutant accumulation and more rigorous cleaning for a longer operation time.
Higher Mechanical Strength and Collection Efficiency
Being ionized, the tubular hive structure where electrode spacing is uniform, promises higher electric filed intensity and higher collection efficiency besides its mechanical durability.

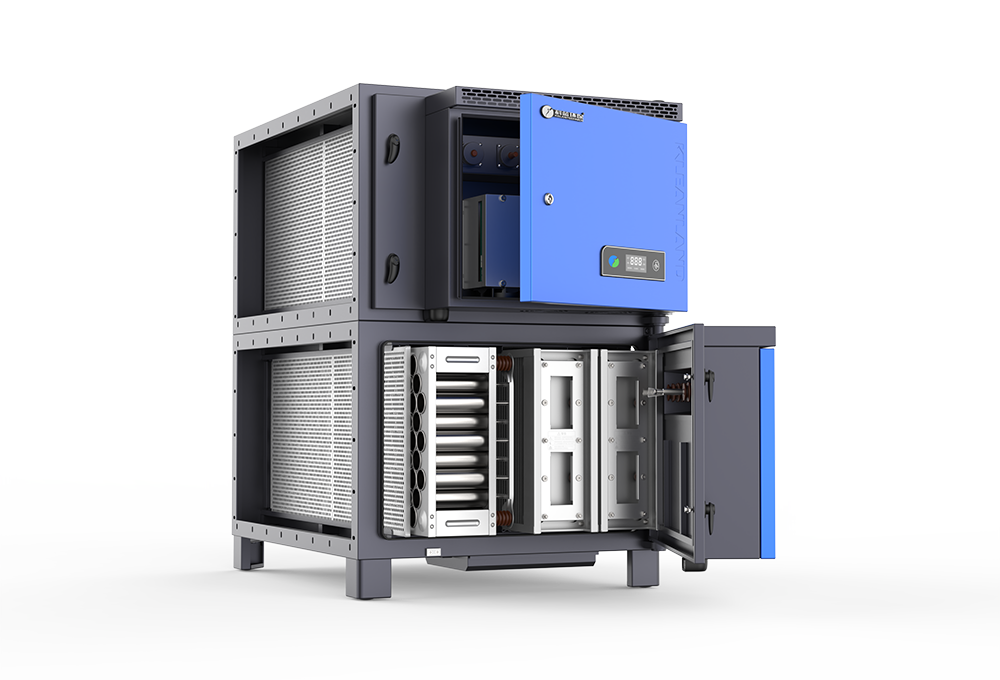

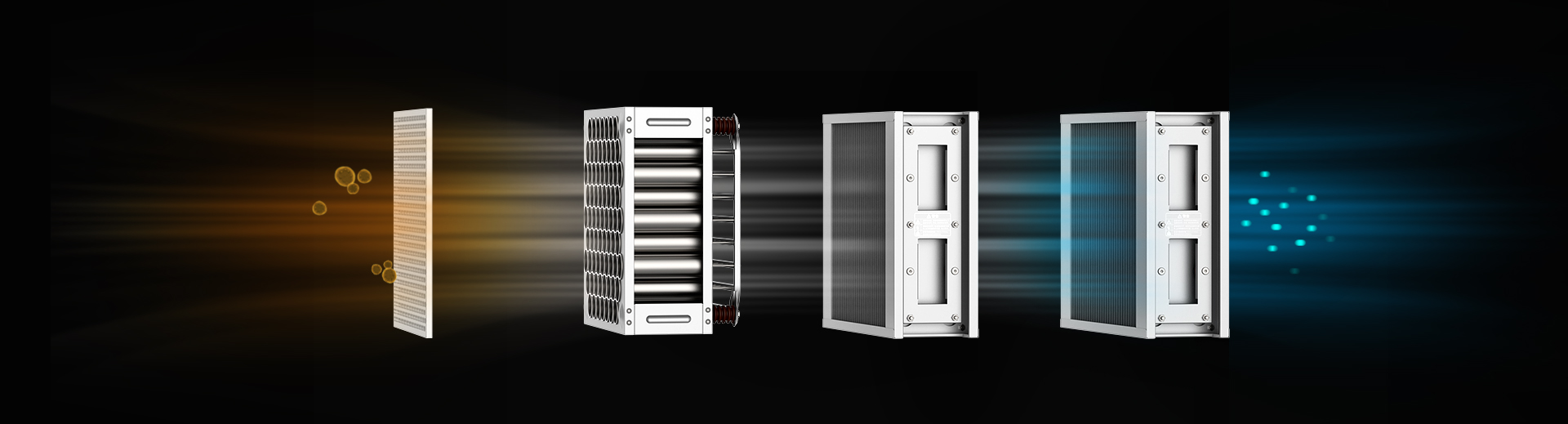

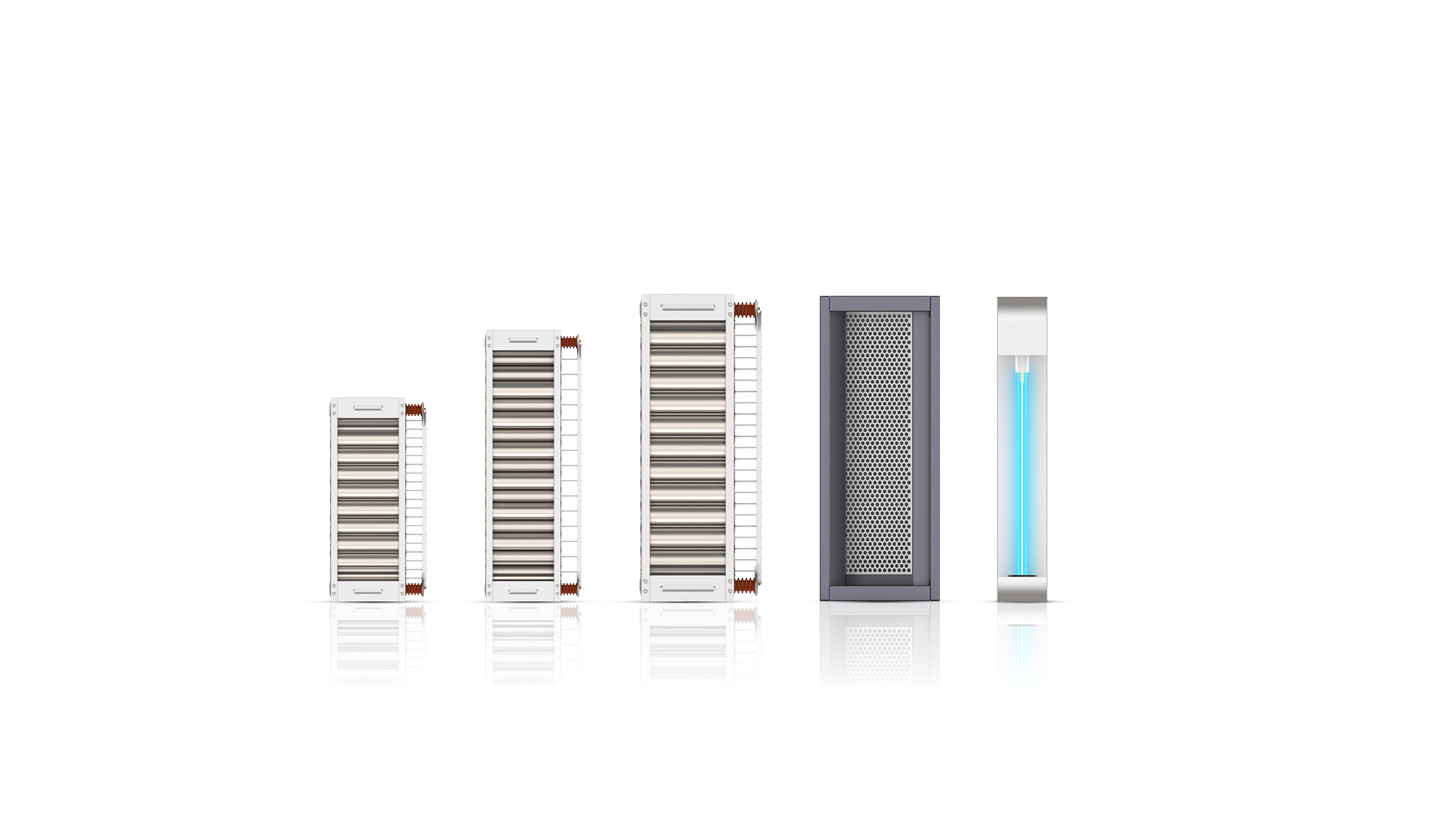

Phase 1 filtration – Tubular ESP
Energized by a higher high- voltage, KLEAN tubular ESP filter delivers highly-efficient removal of oil, grease and smoke particles.
Phase 2 Filtration – Plate ESP
KLEAN plate filter offers extra collection area and narrower airflow passage between the ionized plates, which secures the seizure of cooking fume from escaping.
Rewarded as Champion in Manufacturing Craftmanship, built to last
Kleanland is a dedicated manufacturer with a 20,000-square-meter production facility encompassing metal processing, ESP filter fabrication, power supply production, and other specialized manufacturing divisions. With over three decades of experience and technological innovation, we have become a trusted supplier of electrostatic precipitators. We take pride in delivering uncompromising quality in every product we create.
Factory Model |
Max Airflow Handling (m3/h) |
External Dimension LxWxH(mm) |
Venting Outlet Size (mm) |
Input Wiring |
Rated Power (w) |
Weight (kg) |
BS-216Q-KL3000SK |
3000 |
907x658x724 |
342x522 |
1P+N+PE AC220/50HZ |
360 |
128 |
BS-216Q-KL4000SK |
4000 |
907x773x724 |
457x522 |
395 |
136 |
|
BS-216Q-KL6000SK |
6000 |
907x1003x724 |
687x522 |
690 |
184 |
|
BS-216Q-KL8000SK |
8000 |
907x1317x724 |
1001x522 |
935 |
211 |
|
BS-216Q-KL10000SK |
10000 |
907x1547x724 |
1231x522 |
1100 |
256 |
|
BS-216Q-KL12000SK |
12000 |
907x1777x724 |
1461x522 |
1242 |
300 |
|
BS-216Q-KL12000ASK |
12000 |
907x1003x1346 |
687x1142 |
1250 |
352 |
|
BS-216Q-KL16000SK |
16000 |
907x1317x1346 |
1001x1144 |
1900 |
416 |
|
BS-216Q-KL20000SK |
20000 |
907x1547x1346 |
1231x1144 |
2200 |
504 |
|
BS-216Q-KL24000SK |
24000 |
907x1777x1346 |
1461x1144 |
2500 |
595 |
|
BS-216Q-KL28000SK |
28000 |
907x2091x1346 |
1775x1144 |
3100 |
712 |
|
BS-216Q-KL30000SK |
30000 |
907x1547x1968 |
1231x1766 |
3P+N+PE AC380 50/60HZ |
3300 |
752 |
BS-216Q-KL36000SK |
36000 |
907x1777x1968 |
1461x1766 |
3800 |
892 |
|
BS-216Q-KL42000SK |
42000 |
907x2091x1968 |
1775x1766 |
4600 |
1068 |
|
BS-216Q-KL48000SK |
48000 |
907x1777x2590 |
1461x2388 |
5100 |
1184 |
|
BS-216Q-KL56000SK |
56000 |
907x2091x2590 |
1775x2388 |
6200 |
1424 |
Installation Guidance on In-Duct Electrostatic Precipitator or Smoke
Kleanland In-duct electrostatic precipitator filtration cell or cooking smoke extractor BS216 series are designed with modular concept.
Installation drawing

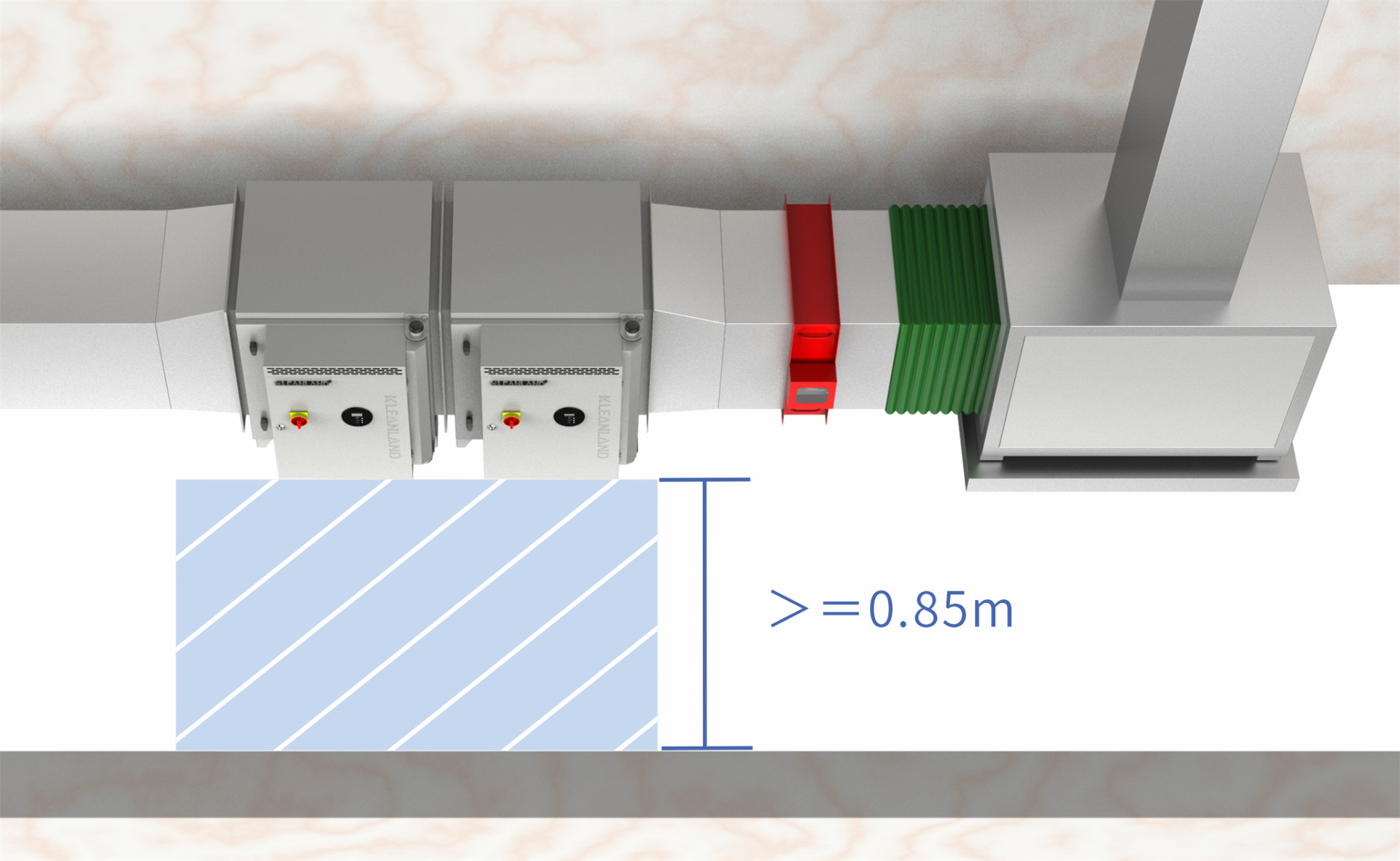

Minimal Clear Space in front of the maintenance doors

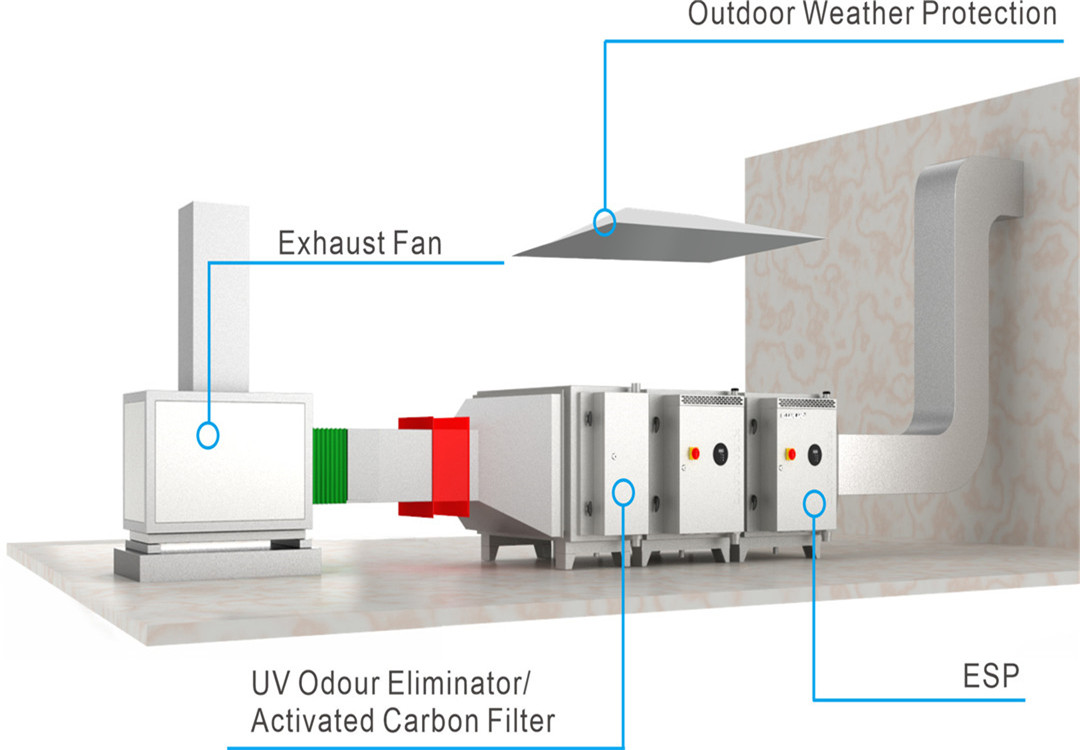

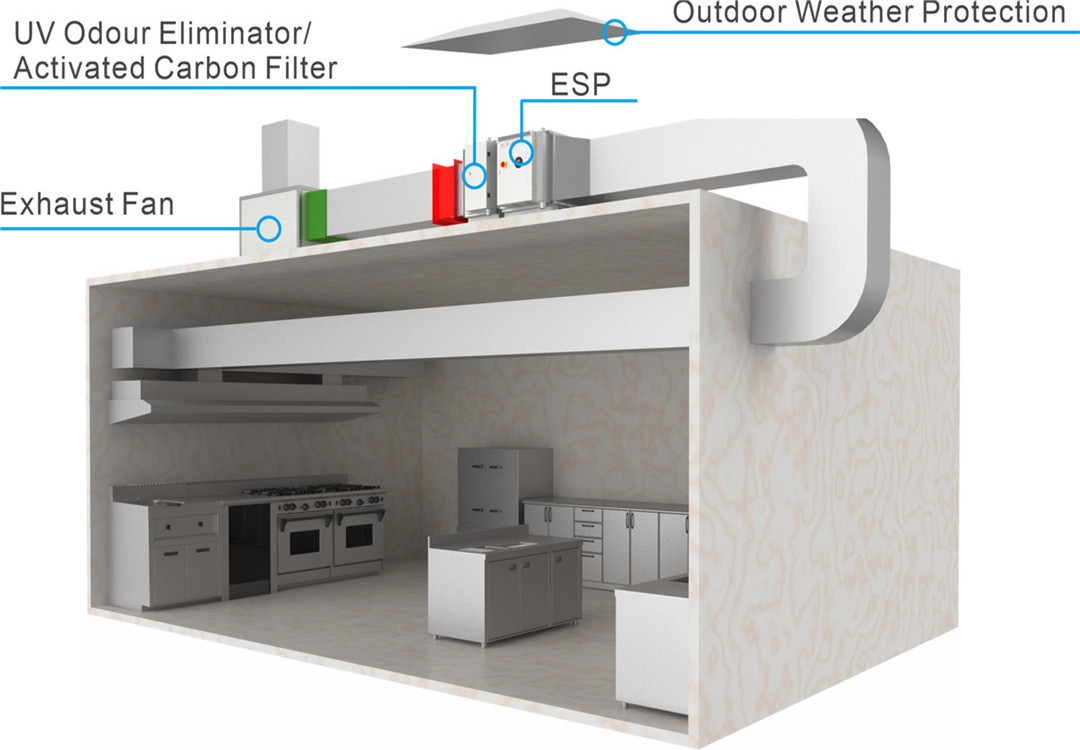

ESP on Roof / Ductwork on Roof

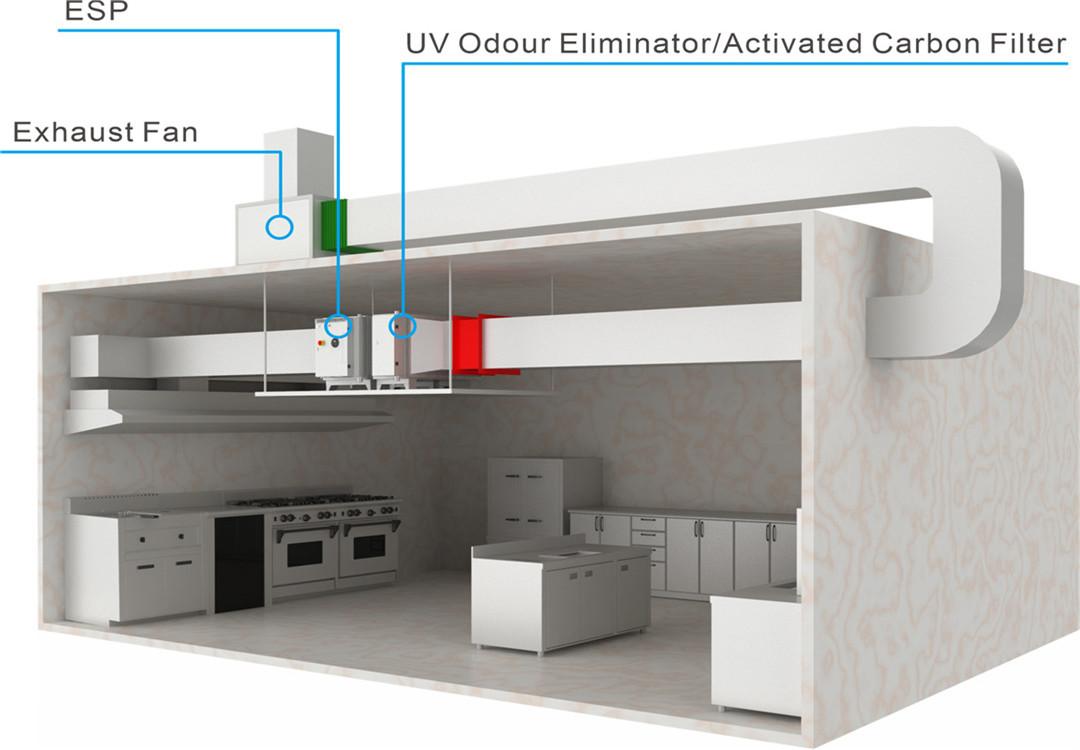

ESP indoor / Ductwork on Roof

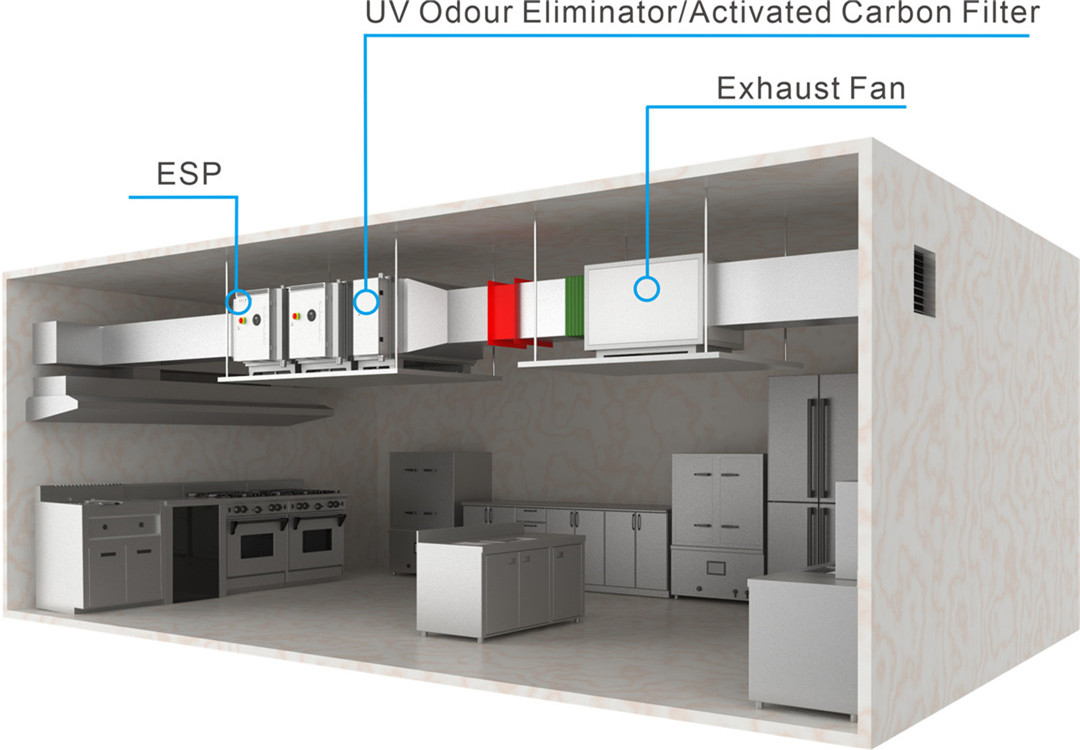

ESP indoor / side wall venting
