Kitchen Electrostatic Precipitators

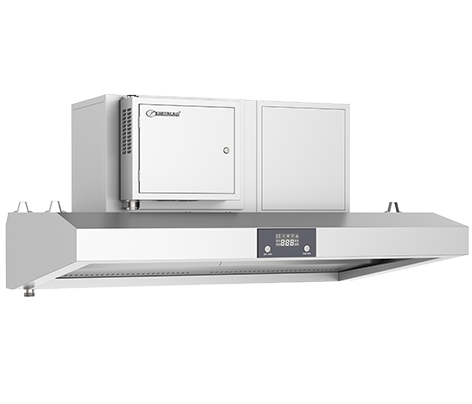

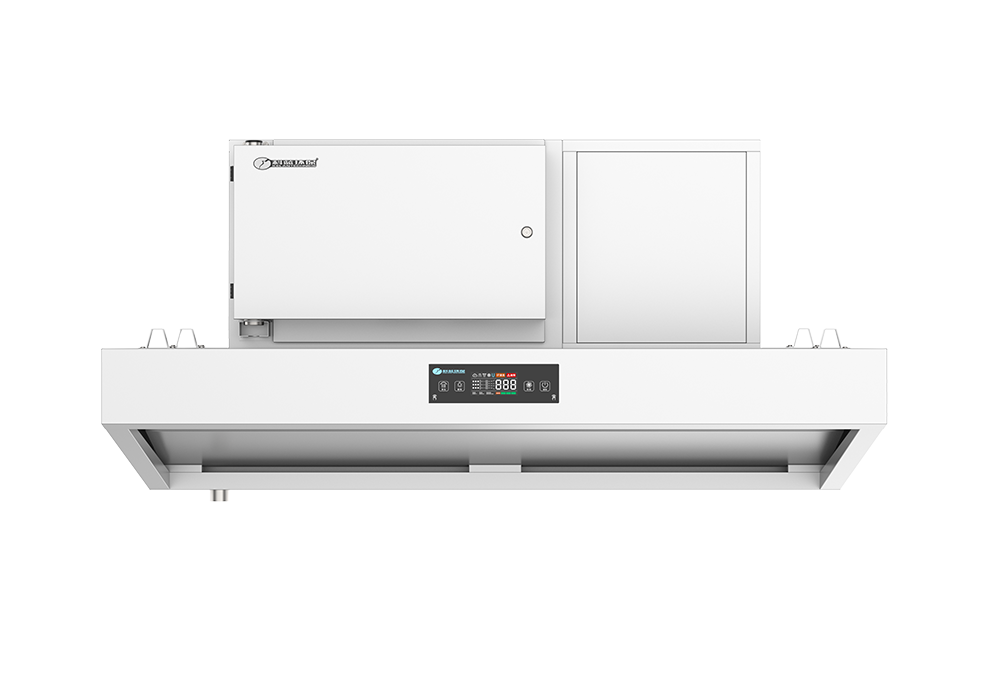

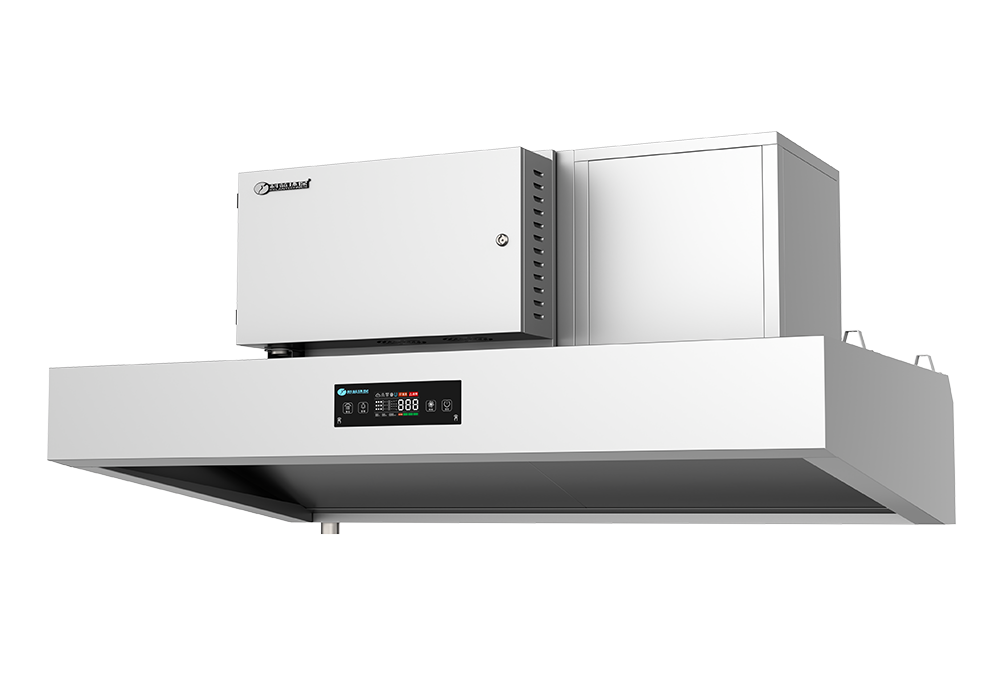

Filtration Efficiency 98% Kitchen Hood with Electrostatic Precipitator
Sichuan Hunan cuisine
Hotel
chain

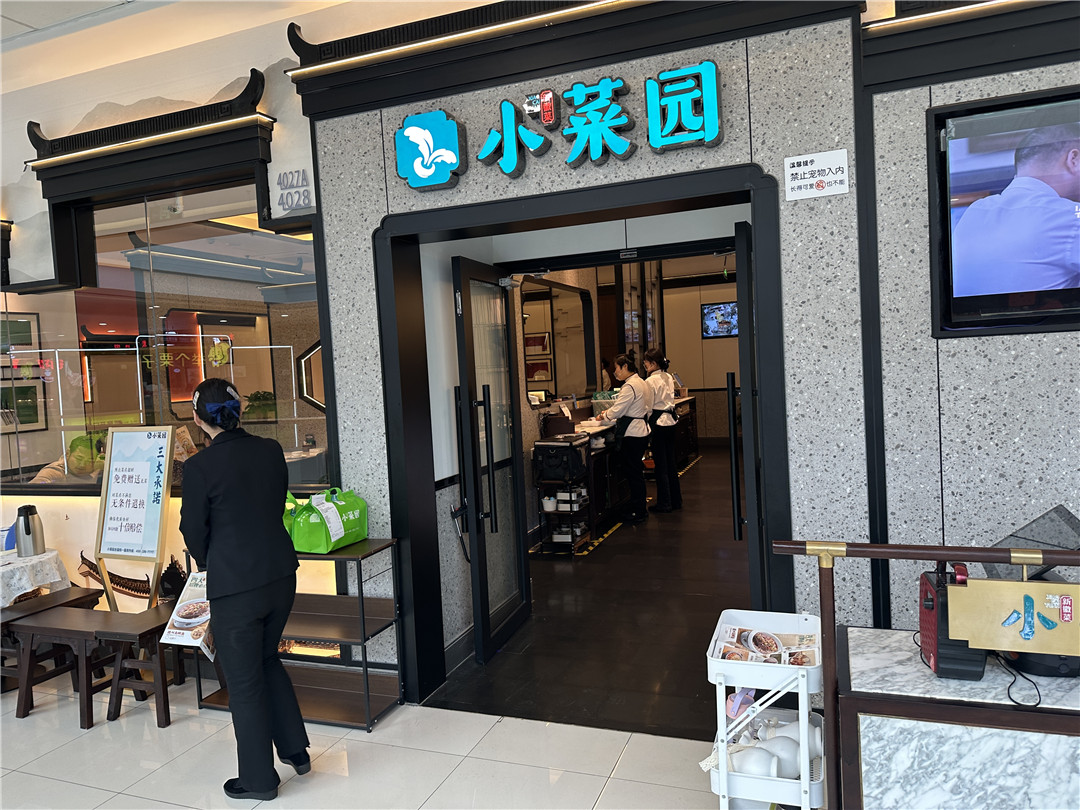

Supermarket
barbecue
canteen

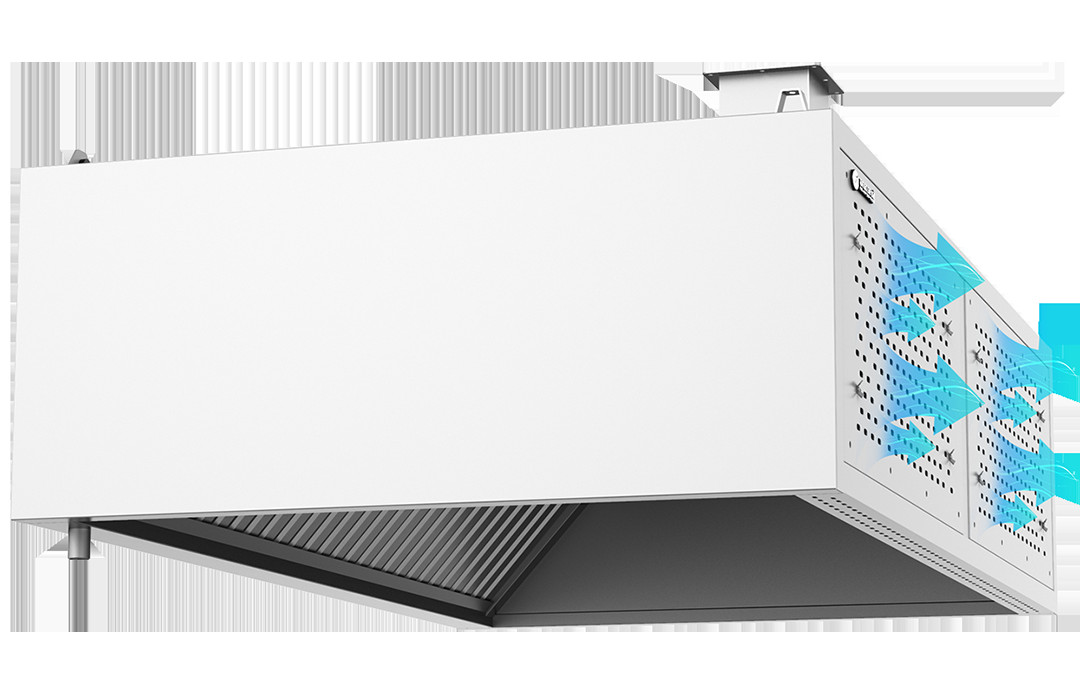

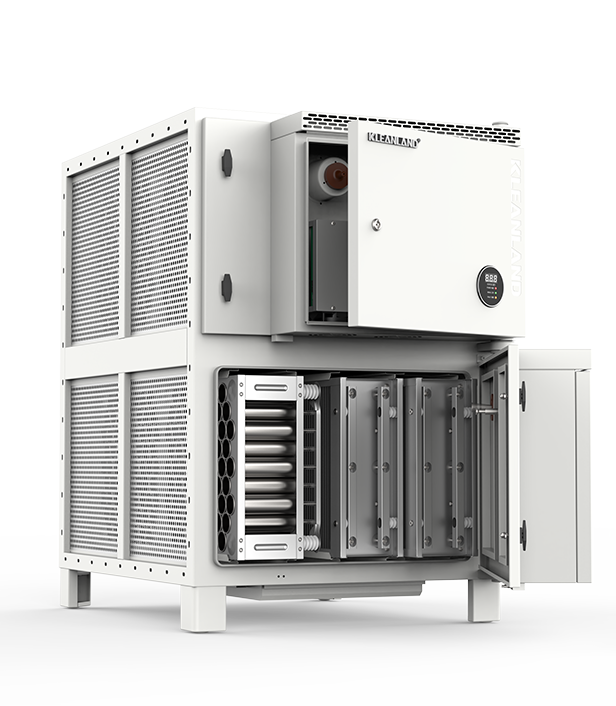

Kleanland Latest version of the kitchen ESP ecology unit
When food is prepared with hot fat, traditional ventilation systems often struggle to handle the resulting emissions. Grease and fat particles accumulate in the exhaust hood, increasing cleaning and energy costs and, in severe cases, elevating the risk of fire. These particles, along with organic matter and byproducts released during cooking, dissolve, evaporate, and disperse into the air, posing significant health risks. For staff working in restaurants, cafes, hotels, snack bars, or catering services, this translates into prolonged exposure to unhealthy air, which can significantly affect their well-being. Kleanland commercial kitchen hoods with ESP cell, are a vital solution for mitigating these issues. By efficiently capturing grease, smoke, and other particulate matter from cooking emissions, they ensure cleaner air, reduce fire hazards, lower maintenance costs, and contribute to a healthier work environment for kitchen staff.
With 32 years’ experience, Kleanland offers you the best commercial ESP hoods
The China 1st ESP kitchen hood was made by Kleanland 32 years ago. Kleanland is the top runner of kitchen esp filtration. After our devoted technical renovation through the years, Kleanland ESP hoods are unmatchable in the market, in aspects such as quality, durability, efficiency, function and service.

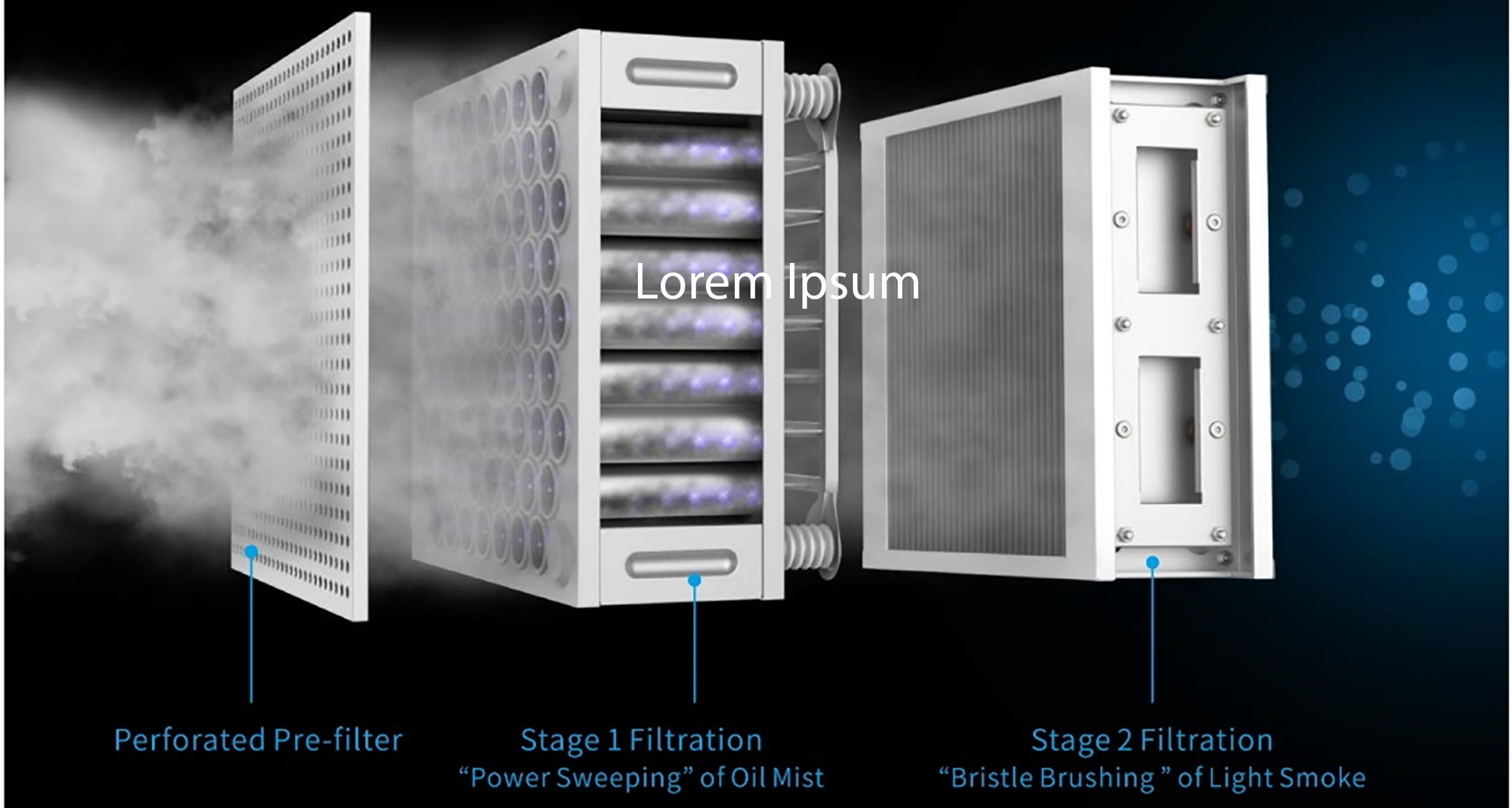

ESP is the best solution for kitchen oily mist collection and filtration
Prolonged Wash Cycle and Operation Life

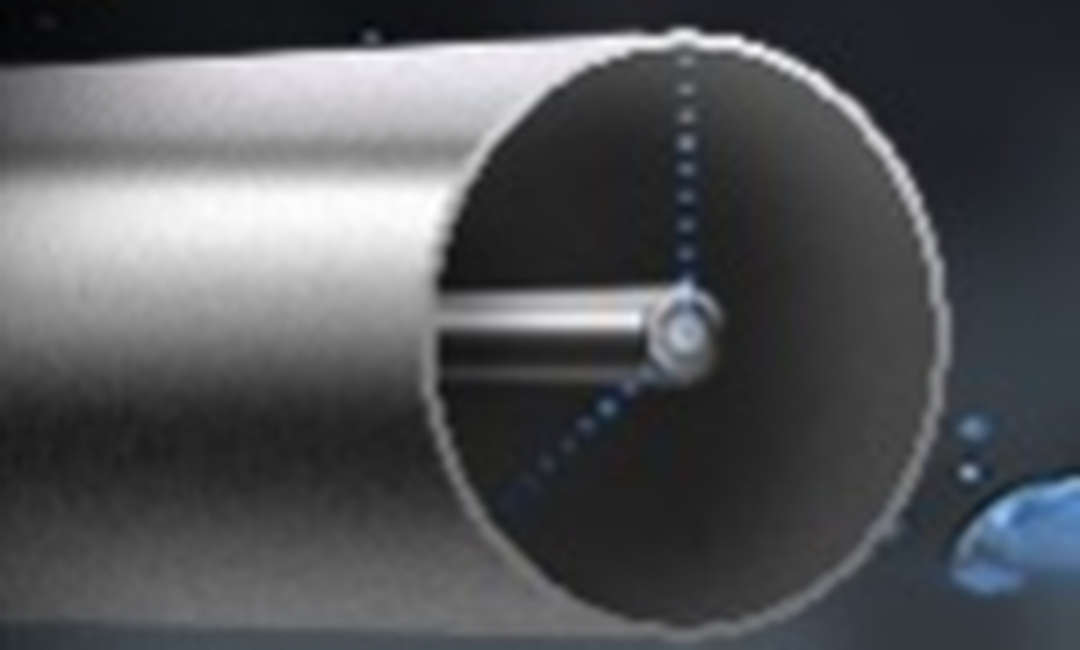

Wider 25mm electrode spacing and SUS304 composition enable the tubular filter cell to endure higher voltage, heavier pollutant accumulation and more rigorous cleaning for a longer operation time.
Higher Mechanical Strength and Collection Efficiency

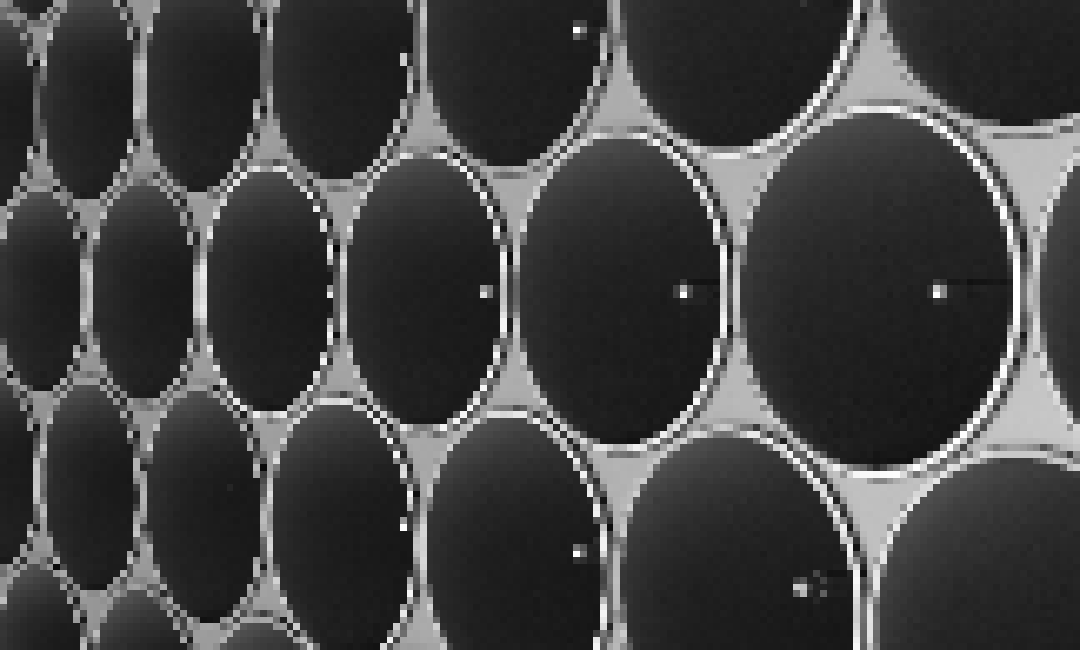

Being ionized, the tubular hive structure where electrode spacing is uniform, promises higher electric filed intensity and higher collection efficiency besides its mechanical durability.

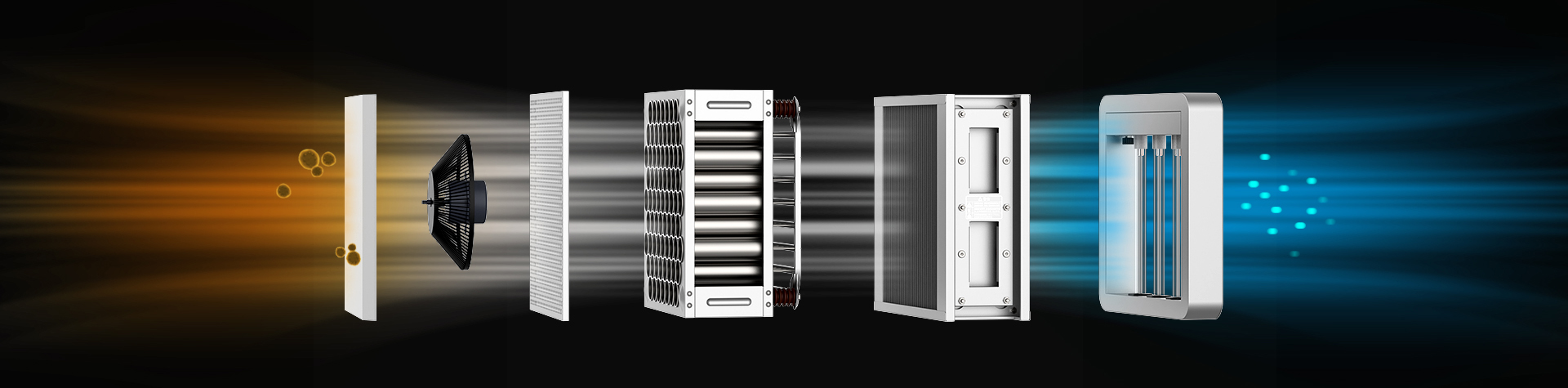

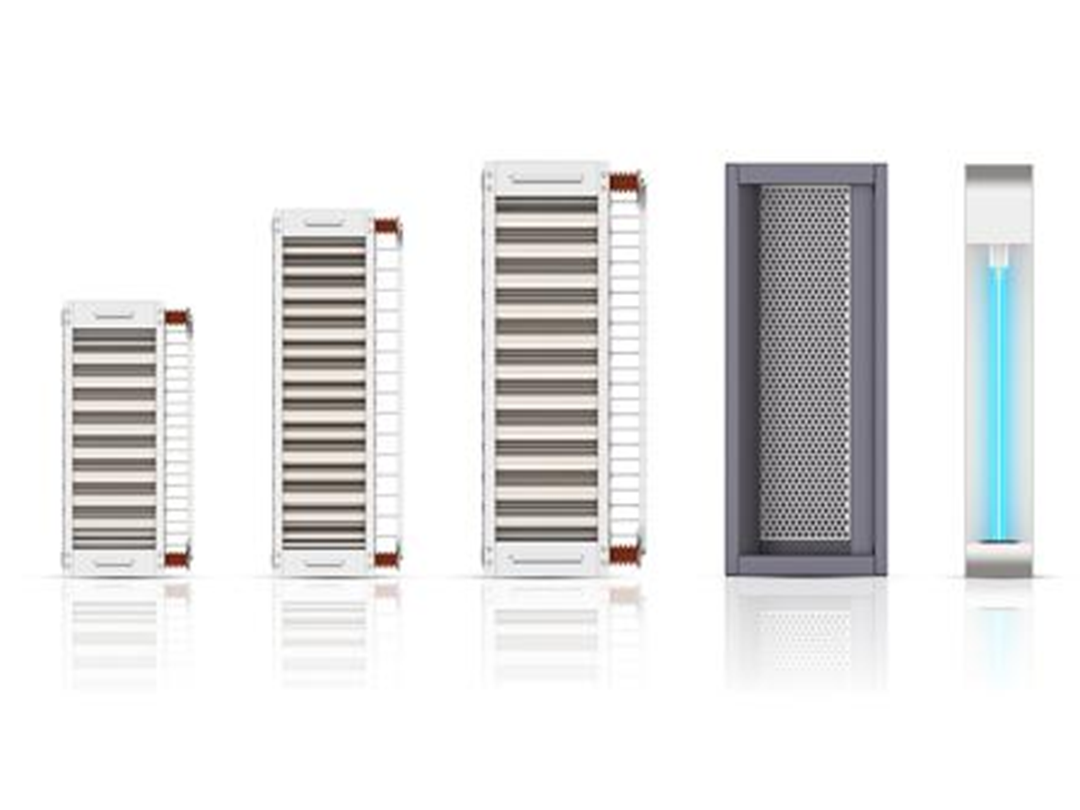

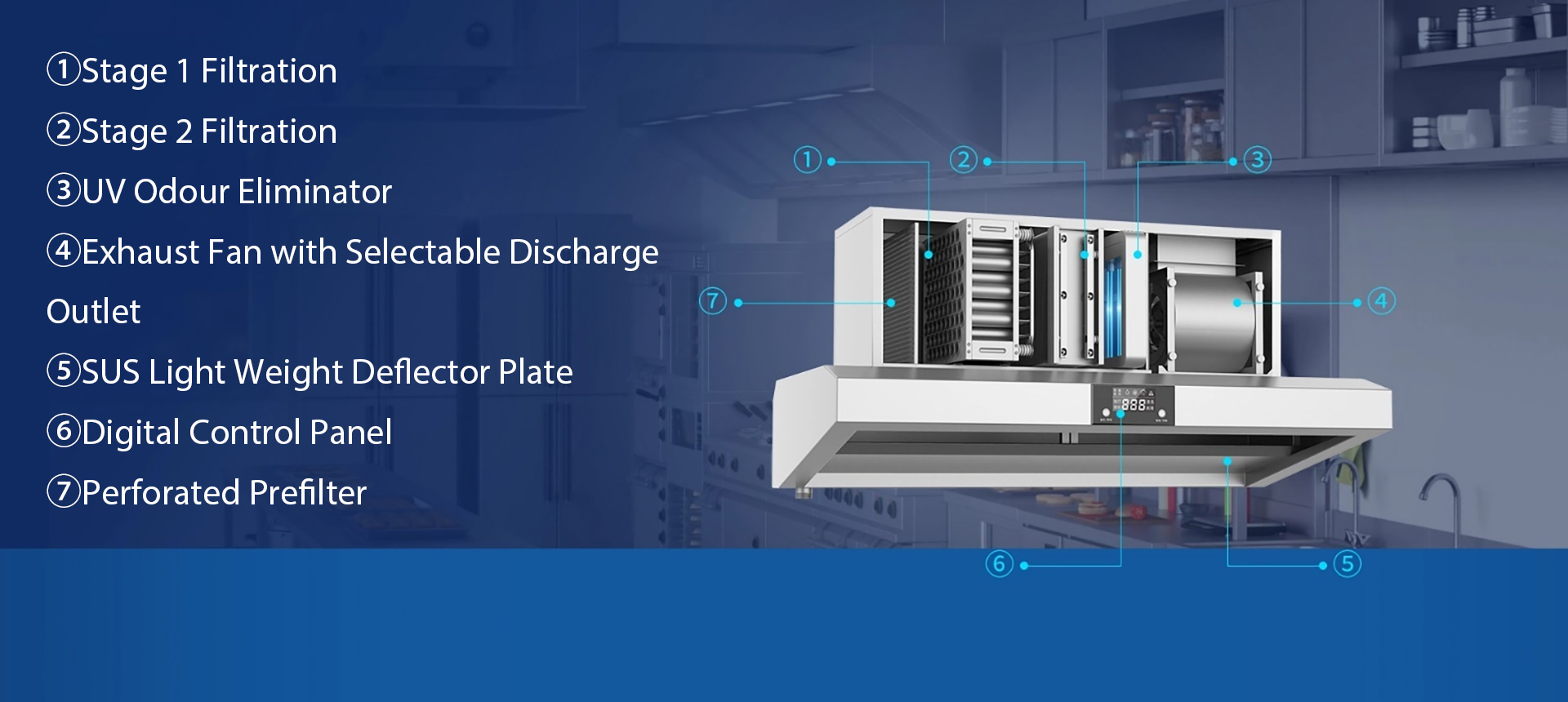

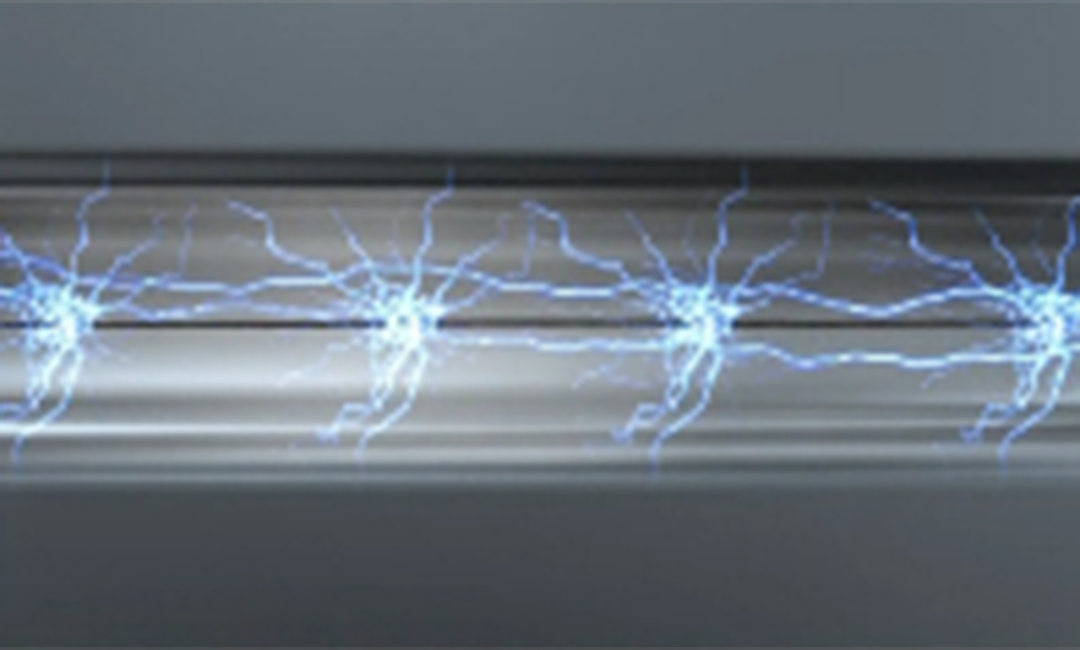

Phase 1 filtration – Tubular ESP
Energized by a higher high- voltage, KLEAN tubular ESP filter delivers highly-efficient removal of oil, grease and smoke particles.

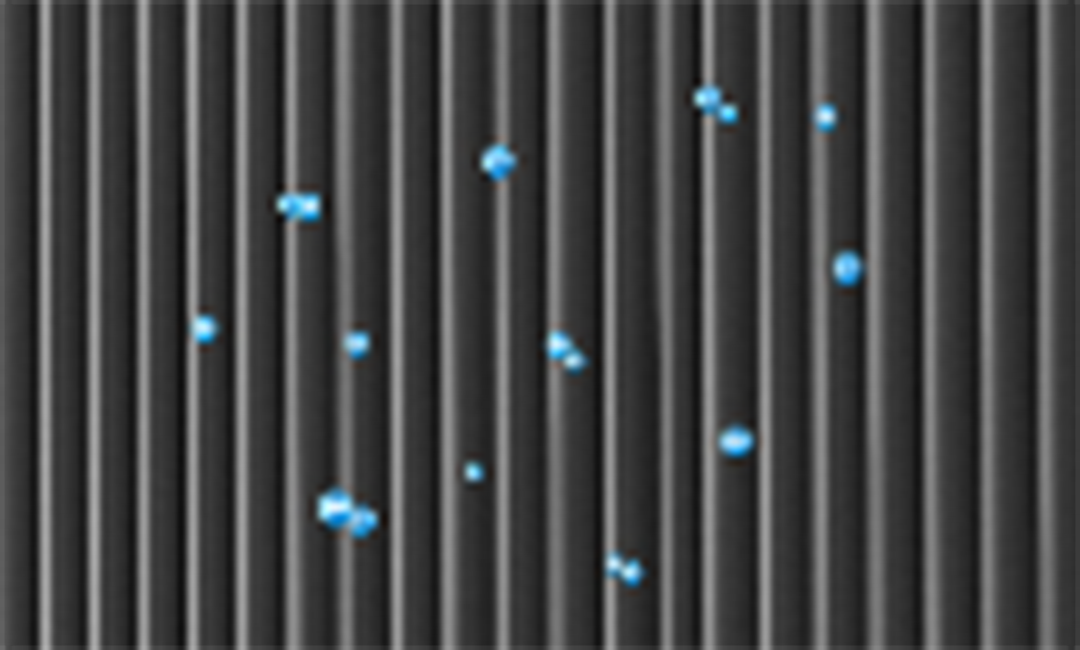

Phase 2 Filtration – Plate ESP
KLEAN plate filter offers extra collection area and narrower airflow passage between the ionized plates, which secures the seizure of cooking fume from escaping.
Rewarded as Champion in Manufacturing Craftmanship, built to last

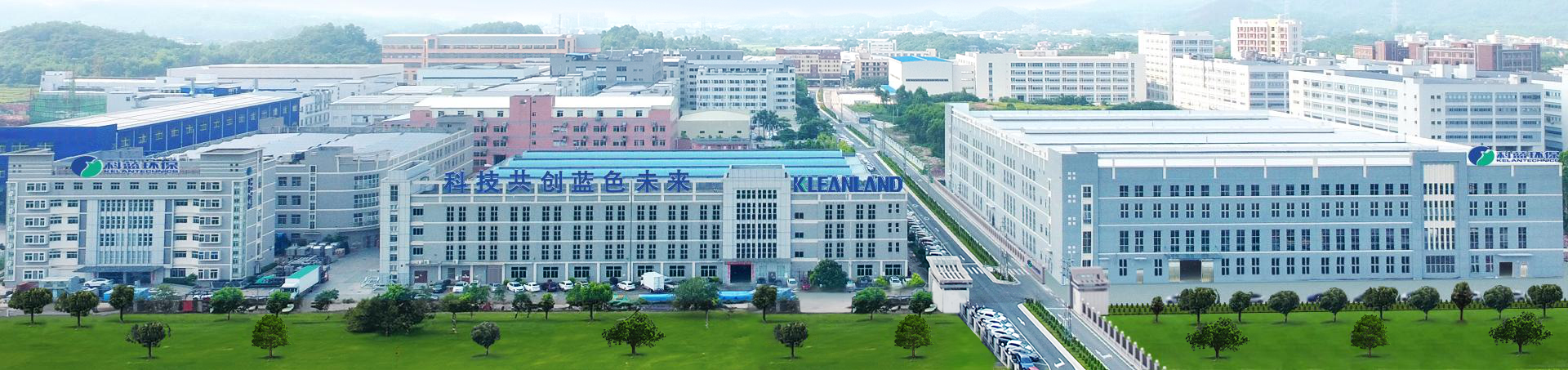

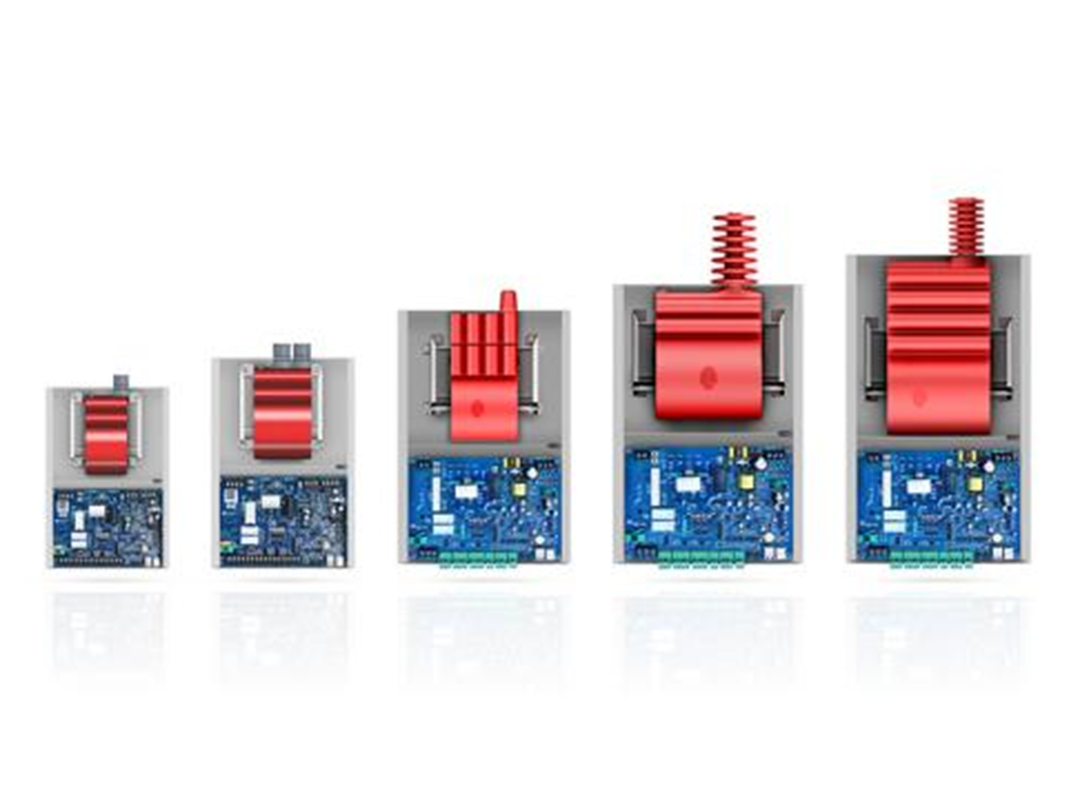

Kleanland is a serious and industrious manufacturer with 20,000 sq meter production area including metal processing, ESP filter fabrication, power supply production and other manufacturing sections. We are mature supplier of electrostatic precipitator after 3 decades’ dedication and technology advancement. We take pride in our uncompressed quality.
Steady and solid laser welding

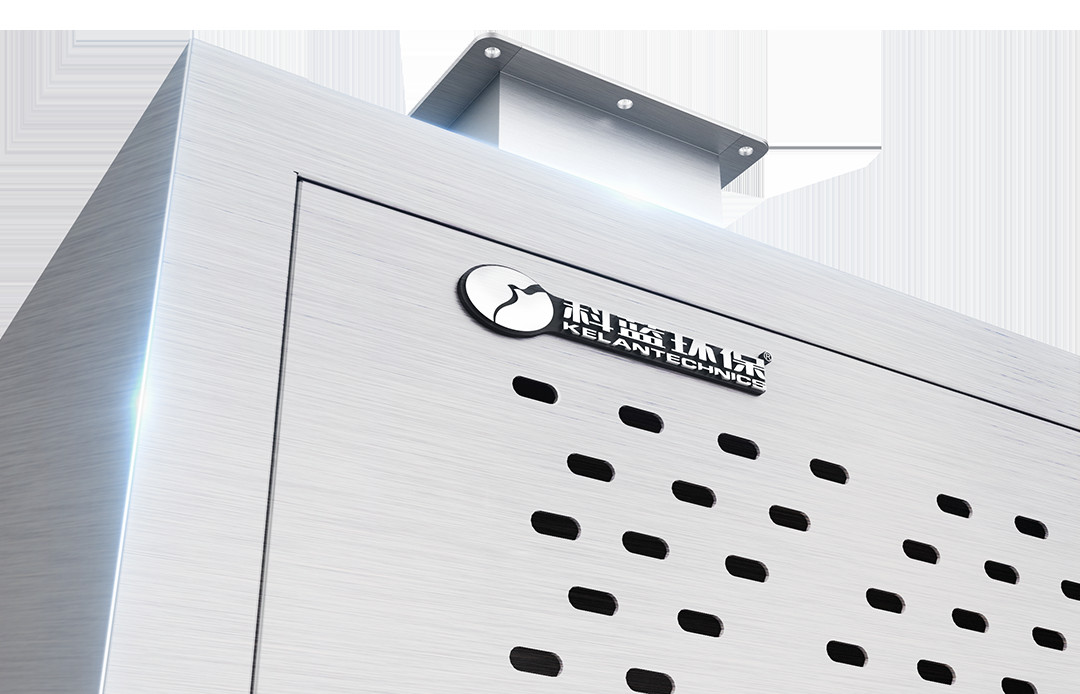

Brushed SUS304 surface

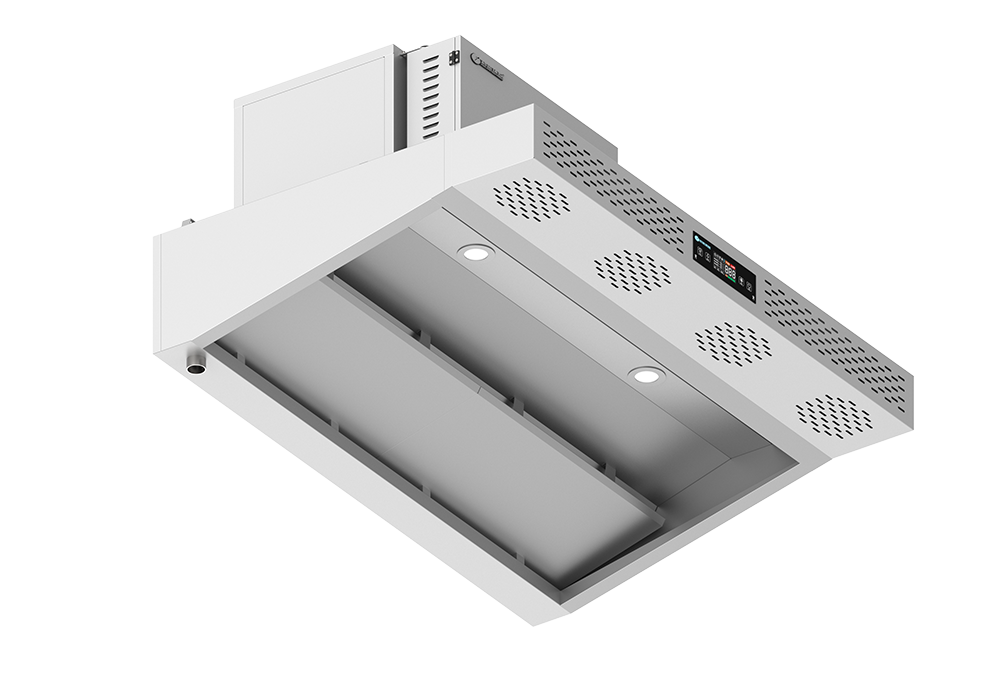

Front / down venting new air system

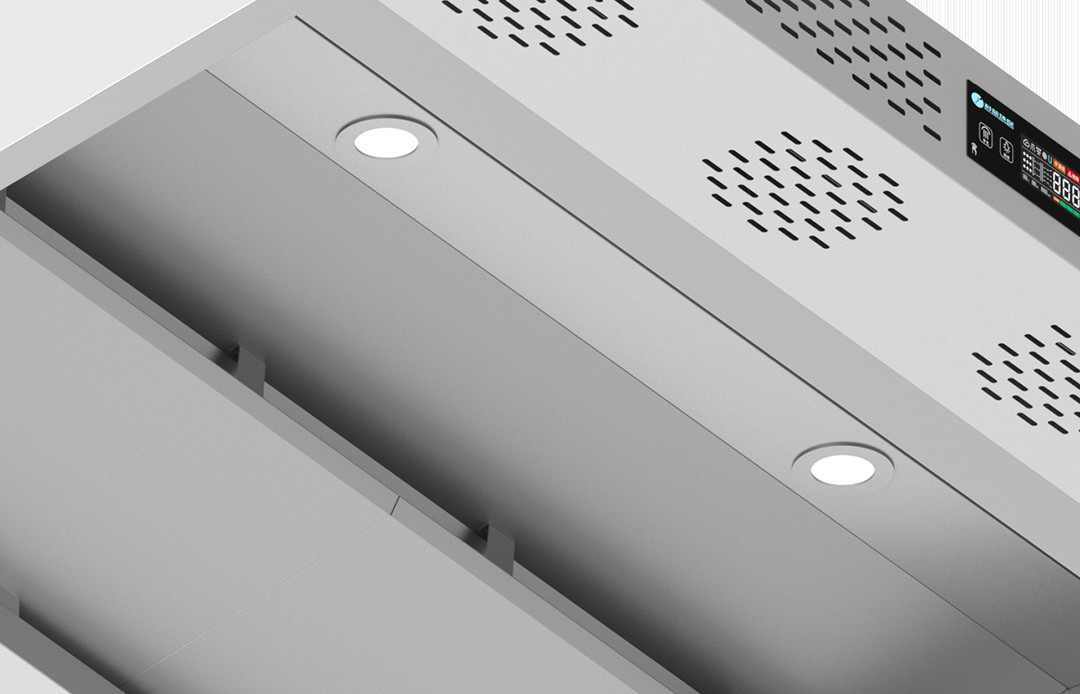

Durable temperature-resistant led lamp
Technical Specifications of ESP Kitchen Ecology Unit
Depth 1100 mm / 43 inch
Factory Model |
Airflow Handling (m3/h) |
Air Resistance (Pa) |
Vent Outlet Size (mm) |
External Dimension LxDxH(mm) |
Rated Power (w) |
Input AC |
BS-266-16D |
3200 |
130 |
300x400 front/top/back/side |
1600x1100x757(rear 976) |
1300 |
3P+N+PE AC380 50HZ |
BS-266-20D |
4000 |
2000x1100x757(rear 976) |
1300 |
|||
BS-266-24D |
4800 |
2400x1100x757(rear 976) |
2000 |
|||
BS-266-20U |
4000 |
145 |
300x400 front/top/back/side |
2000x1100x757(rear 976) |
1400 |
3P+N+PE AC380 50HZ |
BS-266-24U |
4800 |
2400x1100x757(rear 976) |
2100 |
Depth 1300 mm / 51 inch
Factory Model |
Airflow Handling (m3/h) |
Air Resistance (Pa) |
Vent Outlet Size (mm) |
External Dimension LxDxH(mm) |
Rated Power (w) |
Input AC |
BS-266-16DP |
3200 |
130 |
300x400 front/top/back/side |
1600x1300x757(rear 976) |
1300 |
3P+N+PE AC380 50HZ |
BS-266-20DP |
4000 |
2000x1300x757(rear 976) |
1300 |
|||
BS-266-24DP |
4800 |
2400x1300x757(rear 976) |
2000 |
|||
BS-266-20UP |
4000 |
145 |
300x400 front/top/back/side |
2000x1300x757(rear 976) |
1400 |
3P+N+PE AC380 50HZ |
BS-266-24UP |
4800 |
2400x1300x757(rear976) |
2100 |

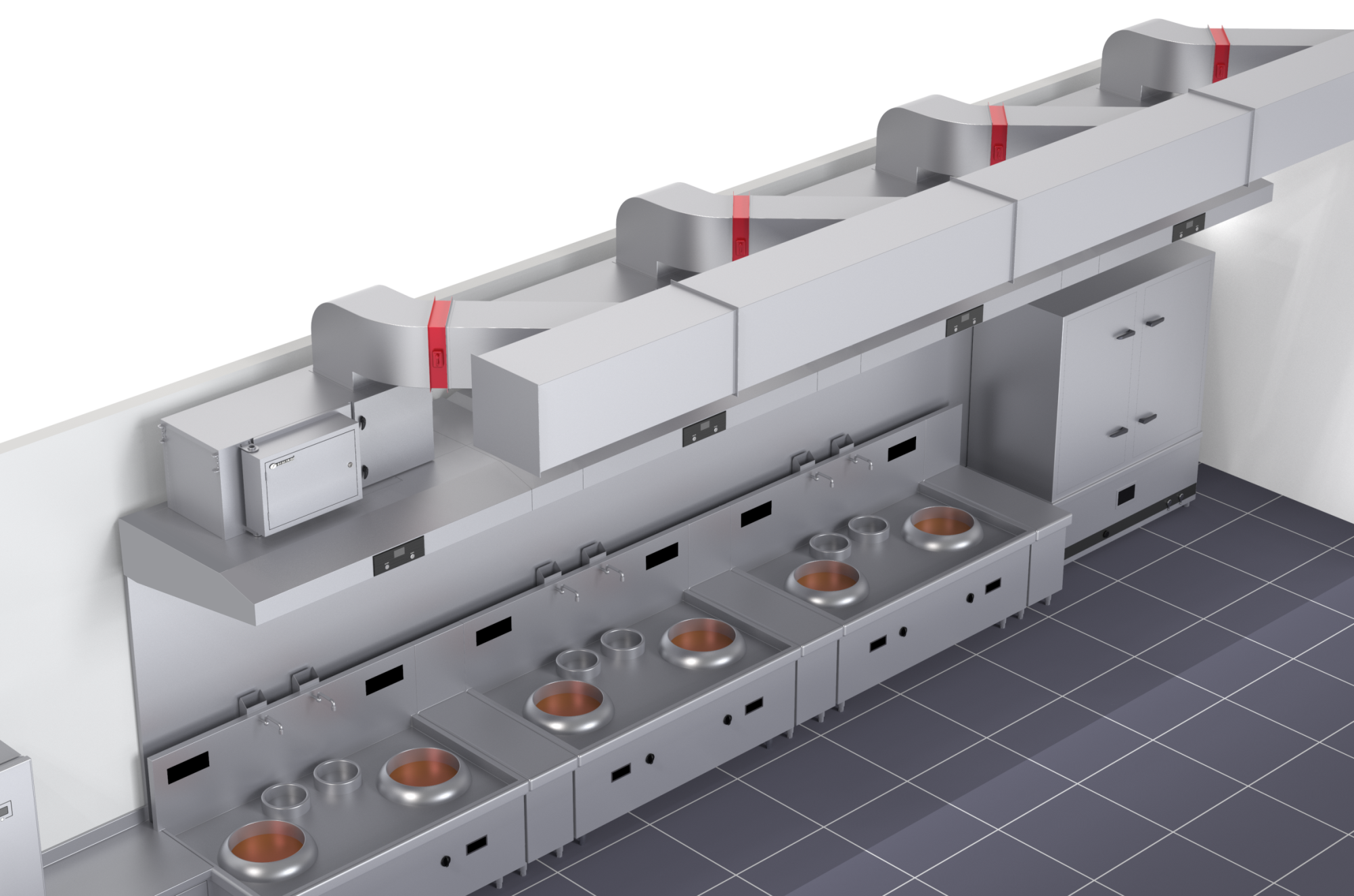

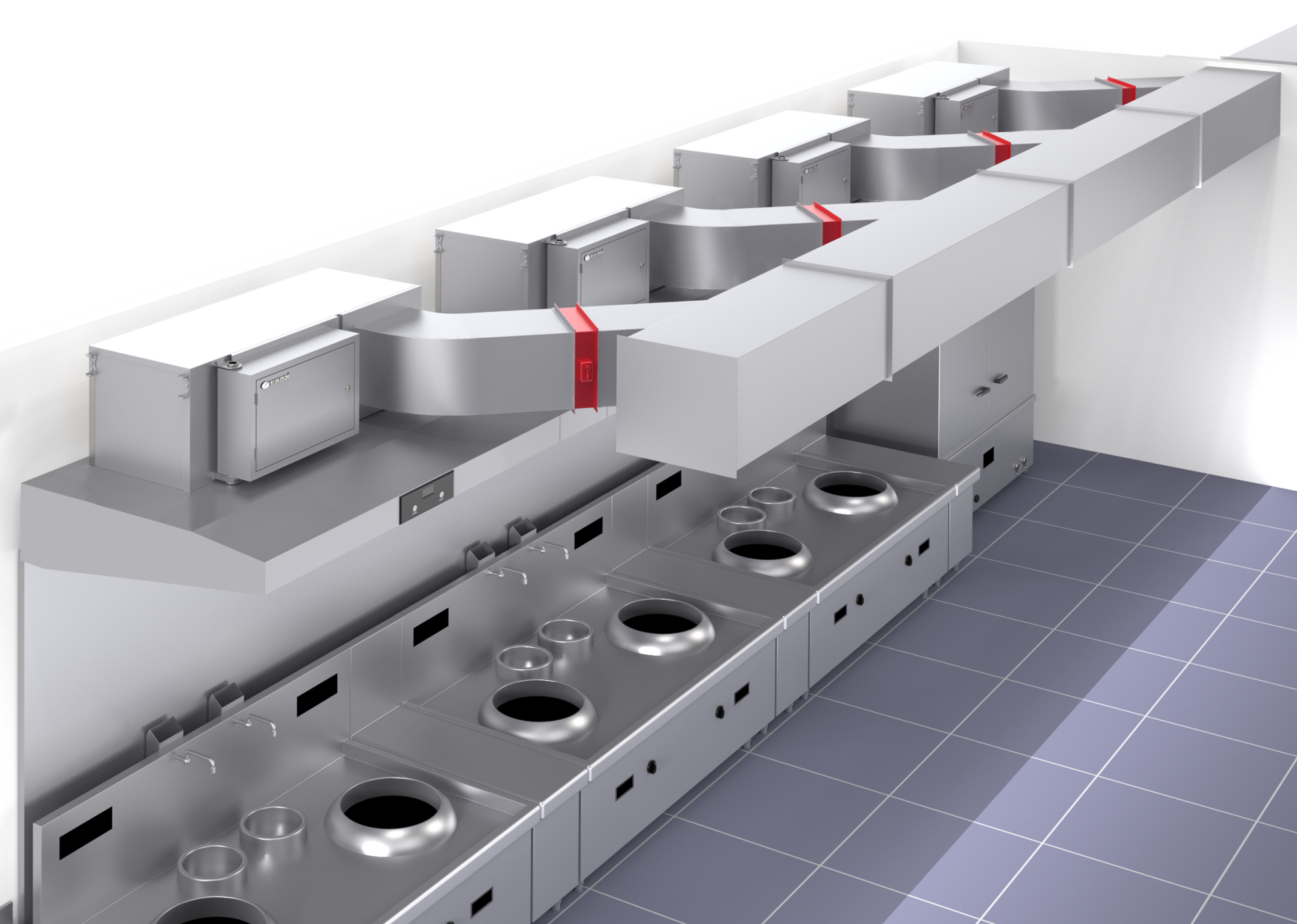

Installation Guidance on Kitchen Hood Electrostatic Precipitator or Smoke Extractor

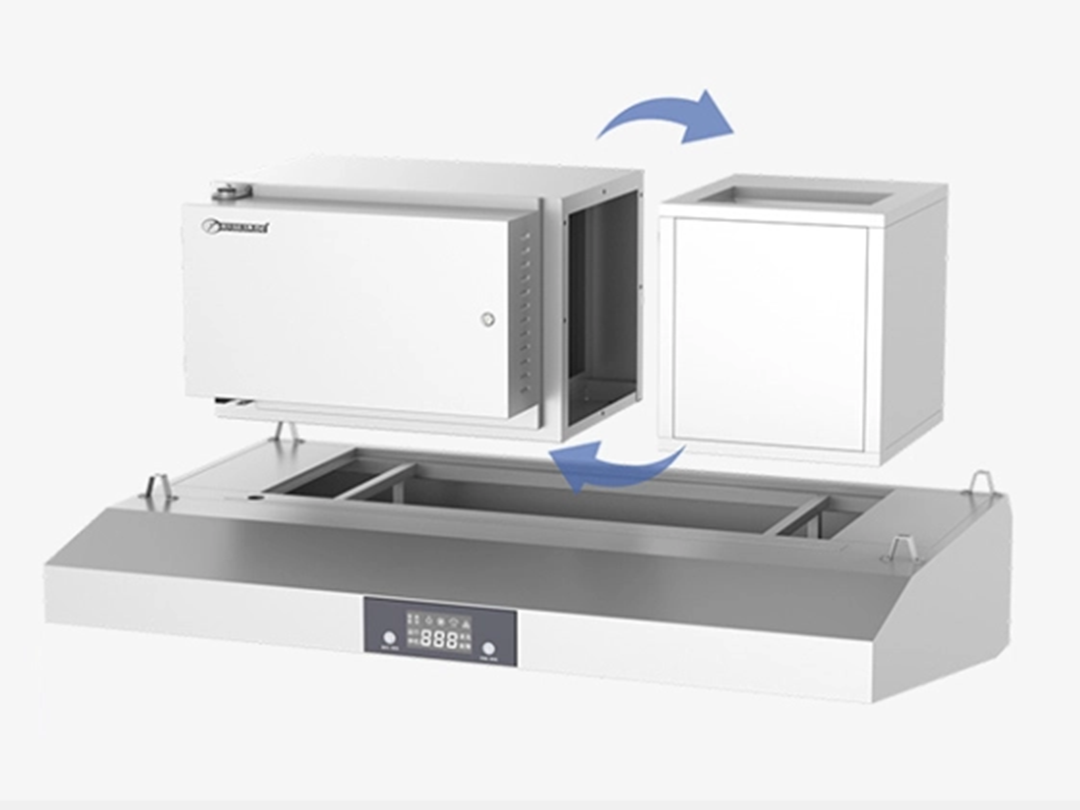

Kleanland ESP Range hood with electrostatic precipitator filtration cell or cooking smoke extractor BS266 series are designed with modular concept. The fan module and ESP filter module can shift its position. Fan module can be places at right side either left side; The vent outlet of the fan module can set to be all directions: right, left, top or side.
So, basing on the dimensional options of fan venting outlet, it’s easy for installers to plan and perform flexible ductwork for different kitchen scenarios. Here we illustrate some conventional ESP hood filter venting ductworks for your reference.

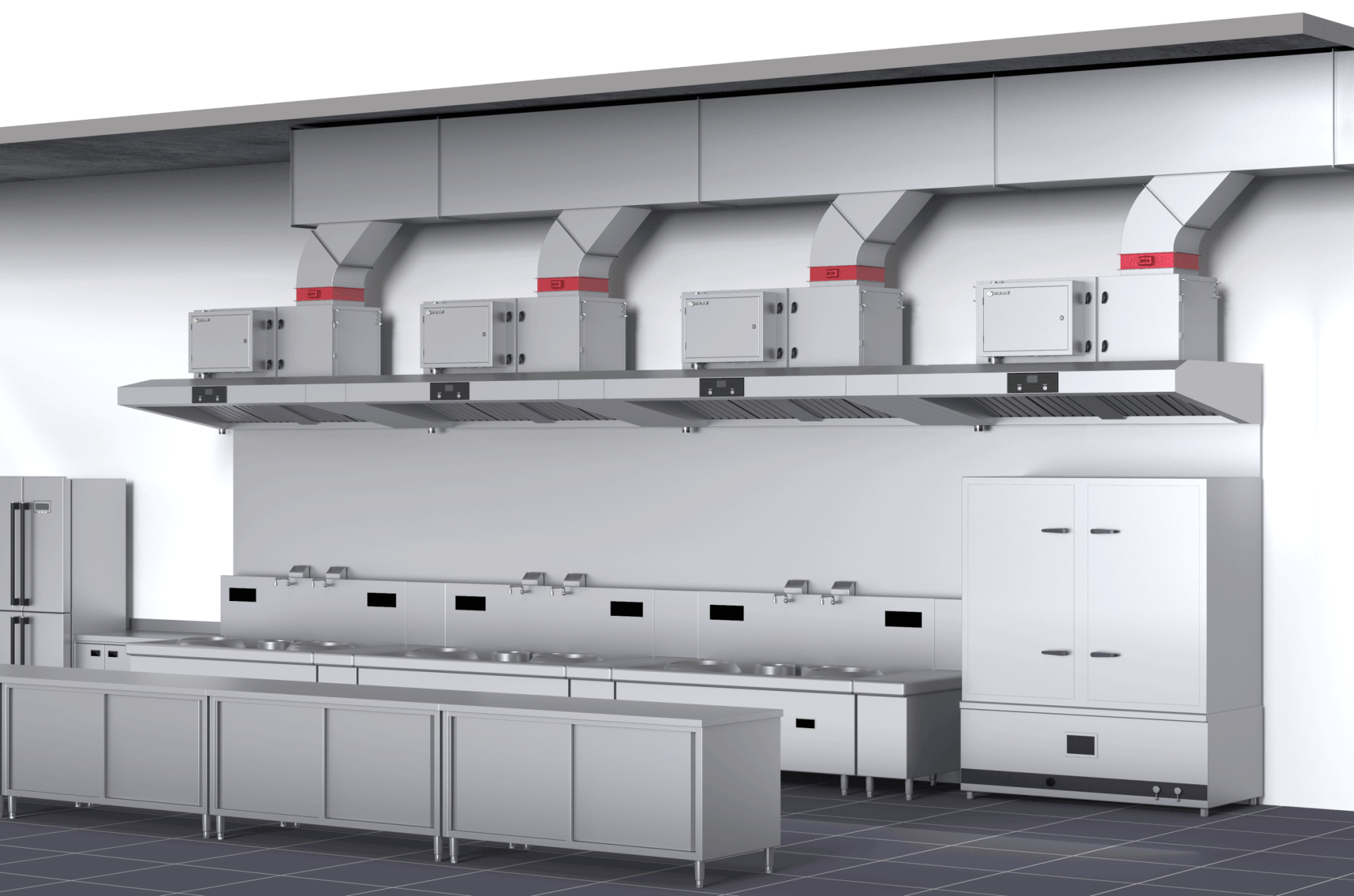

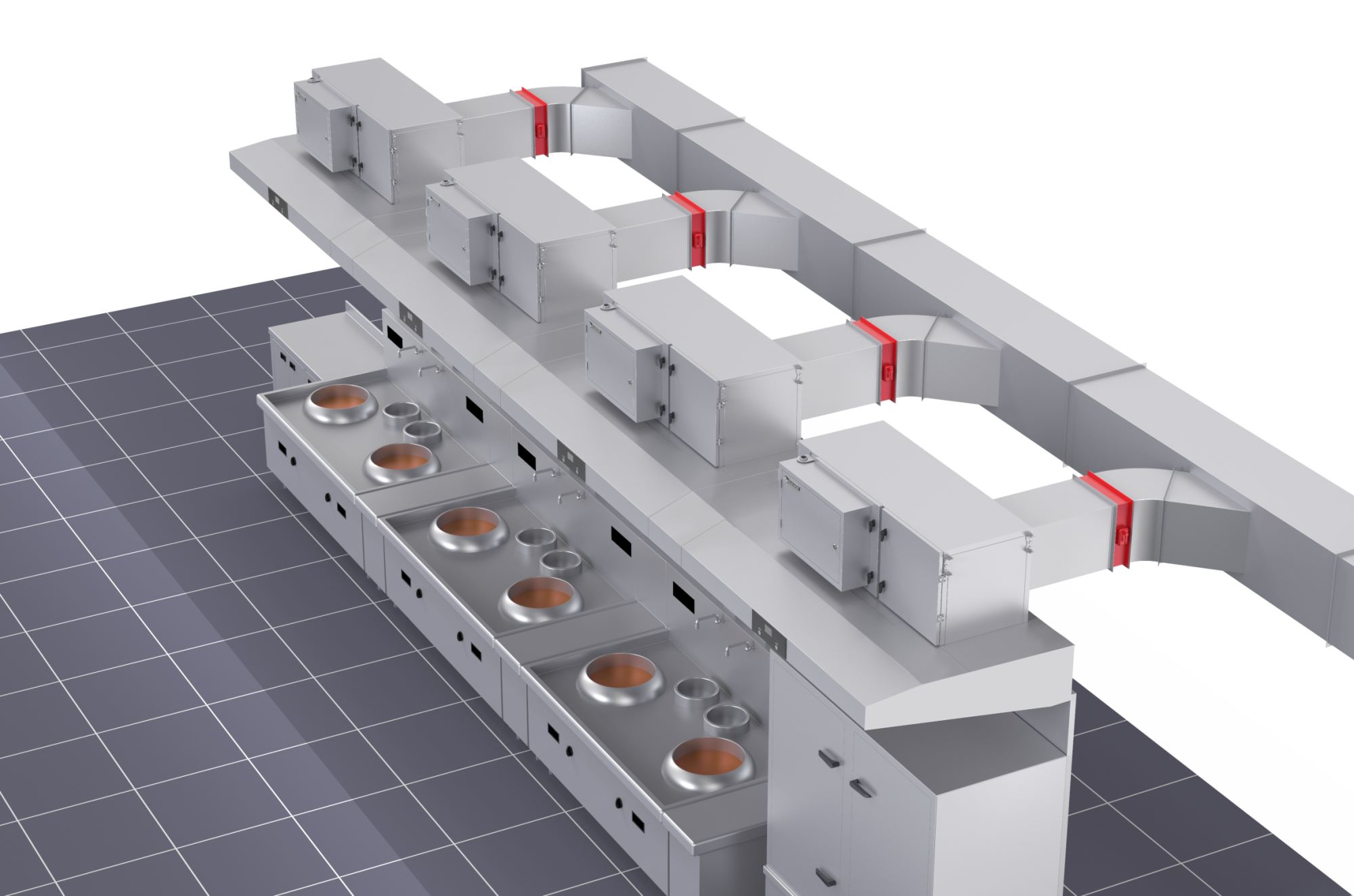

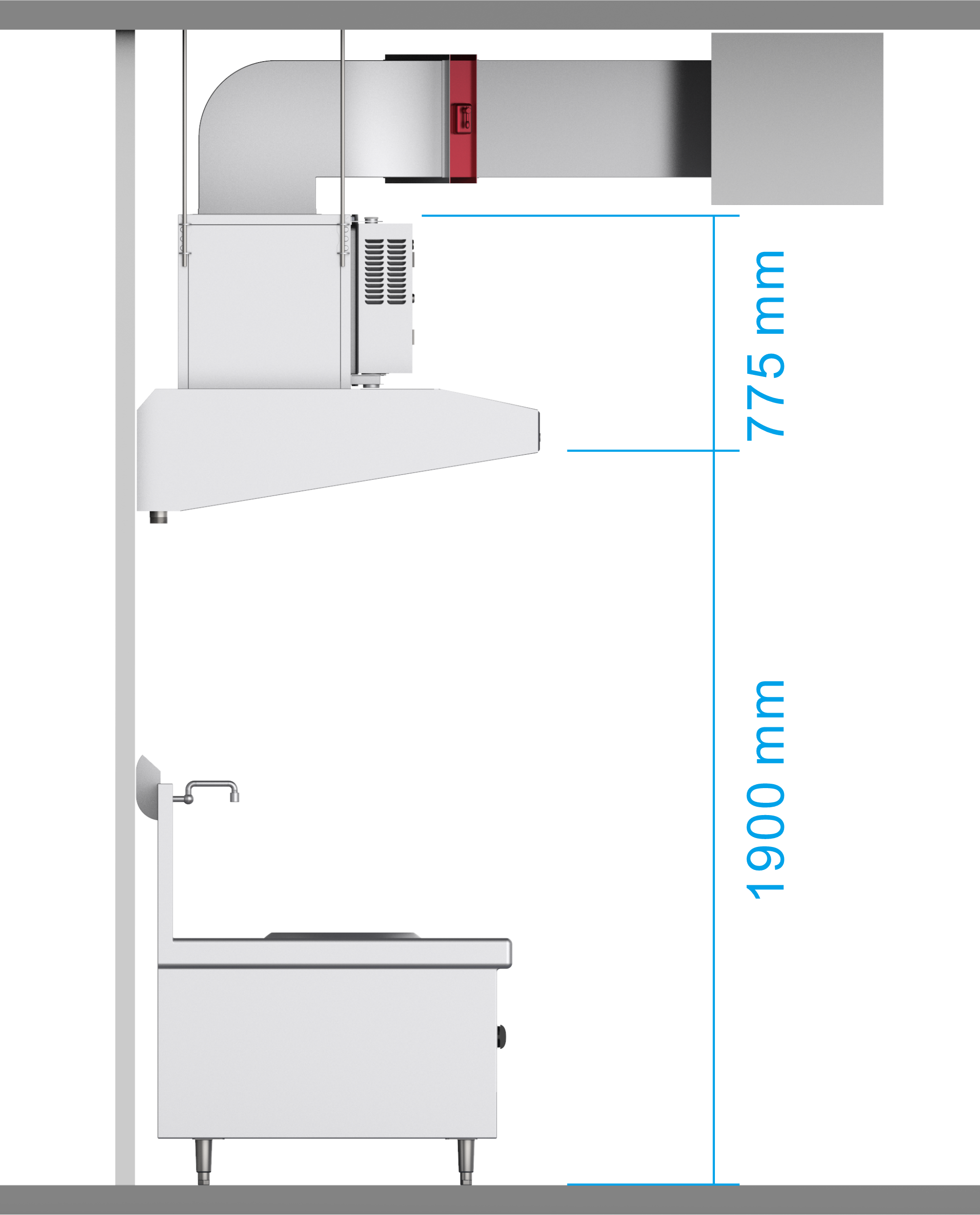

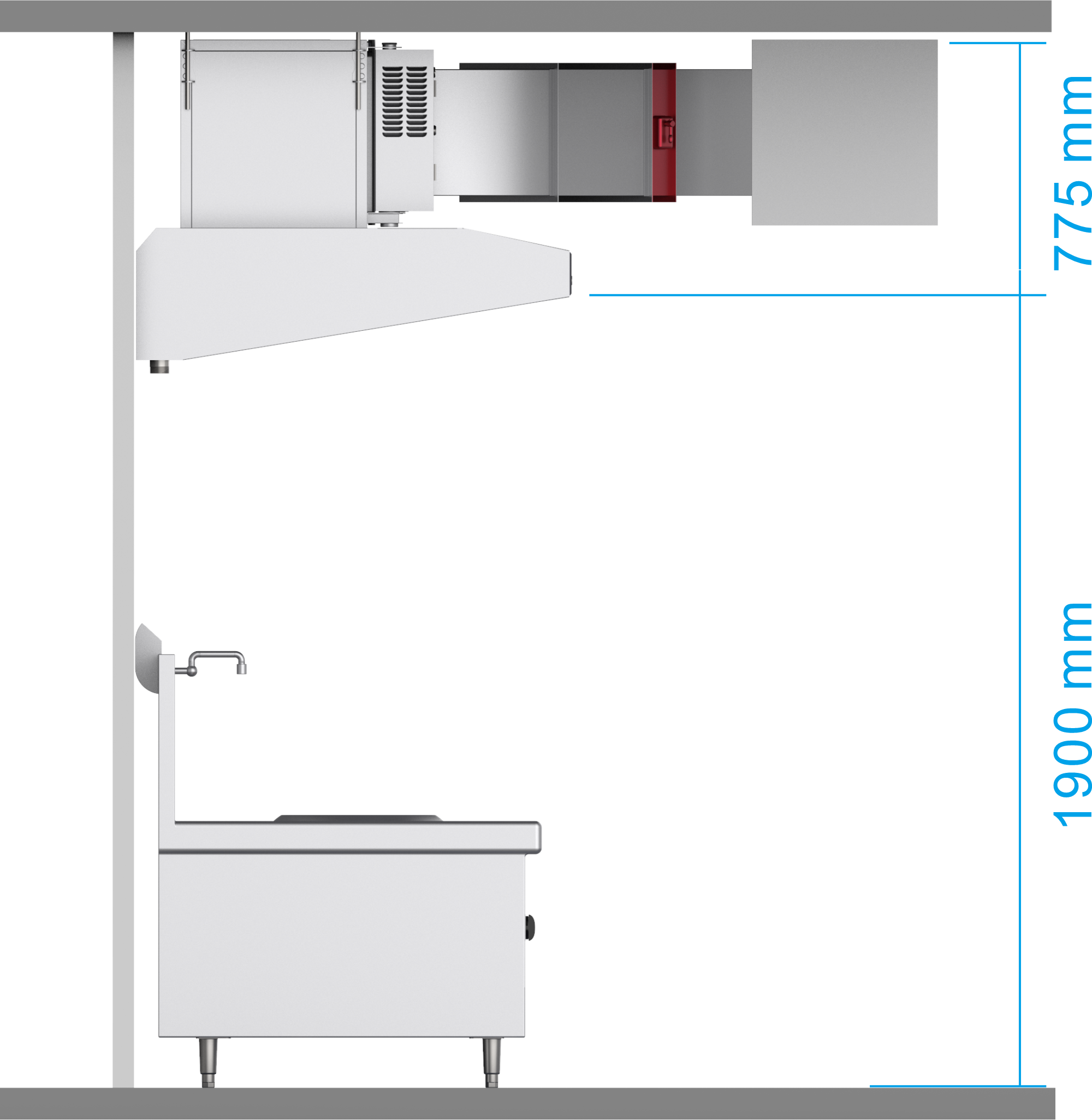

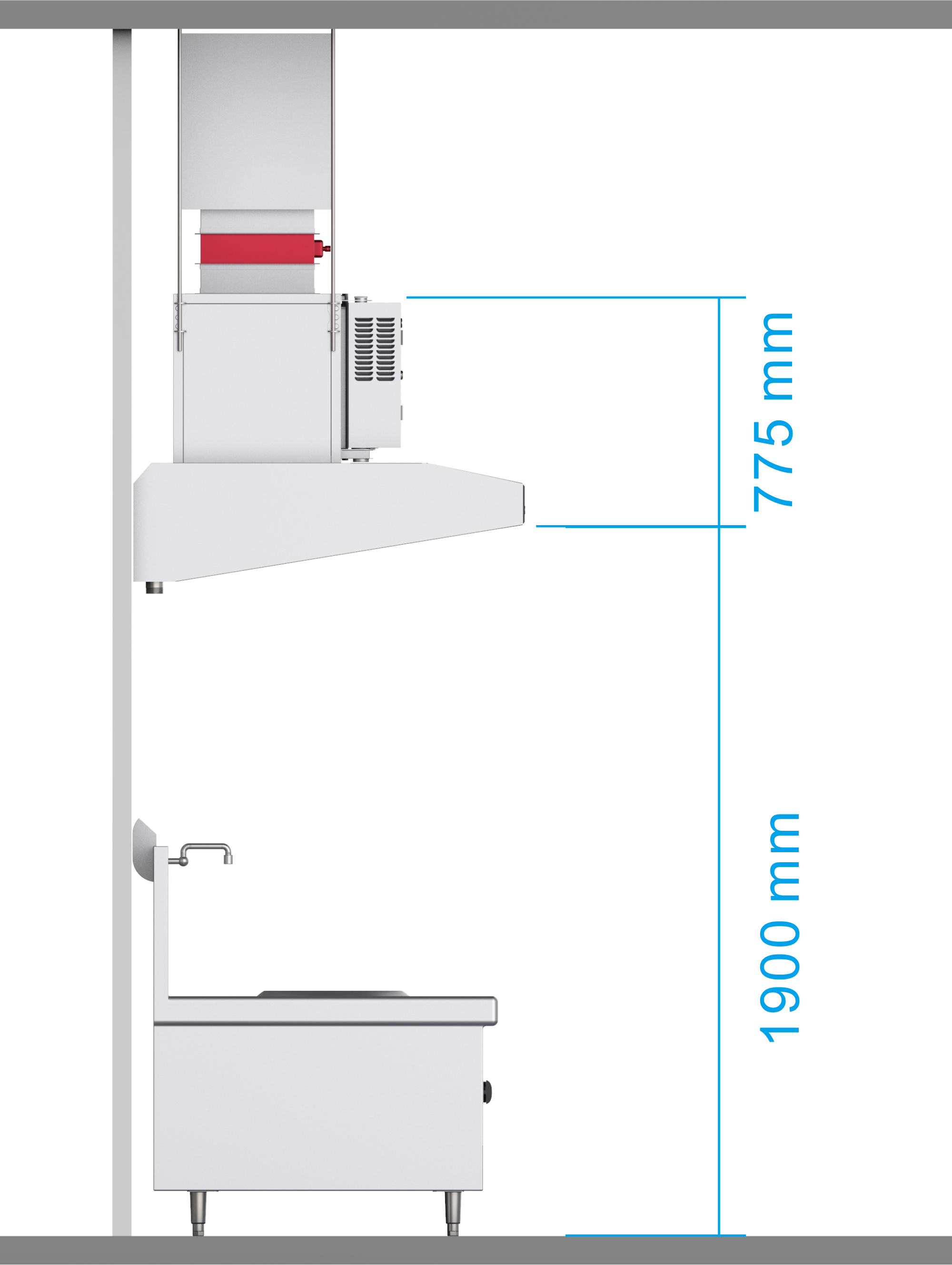

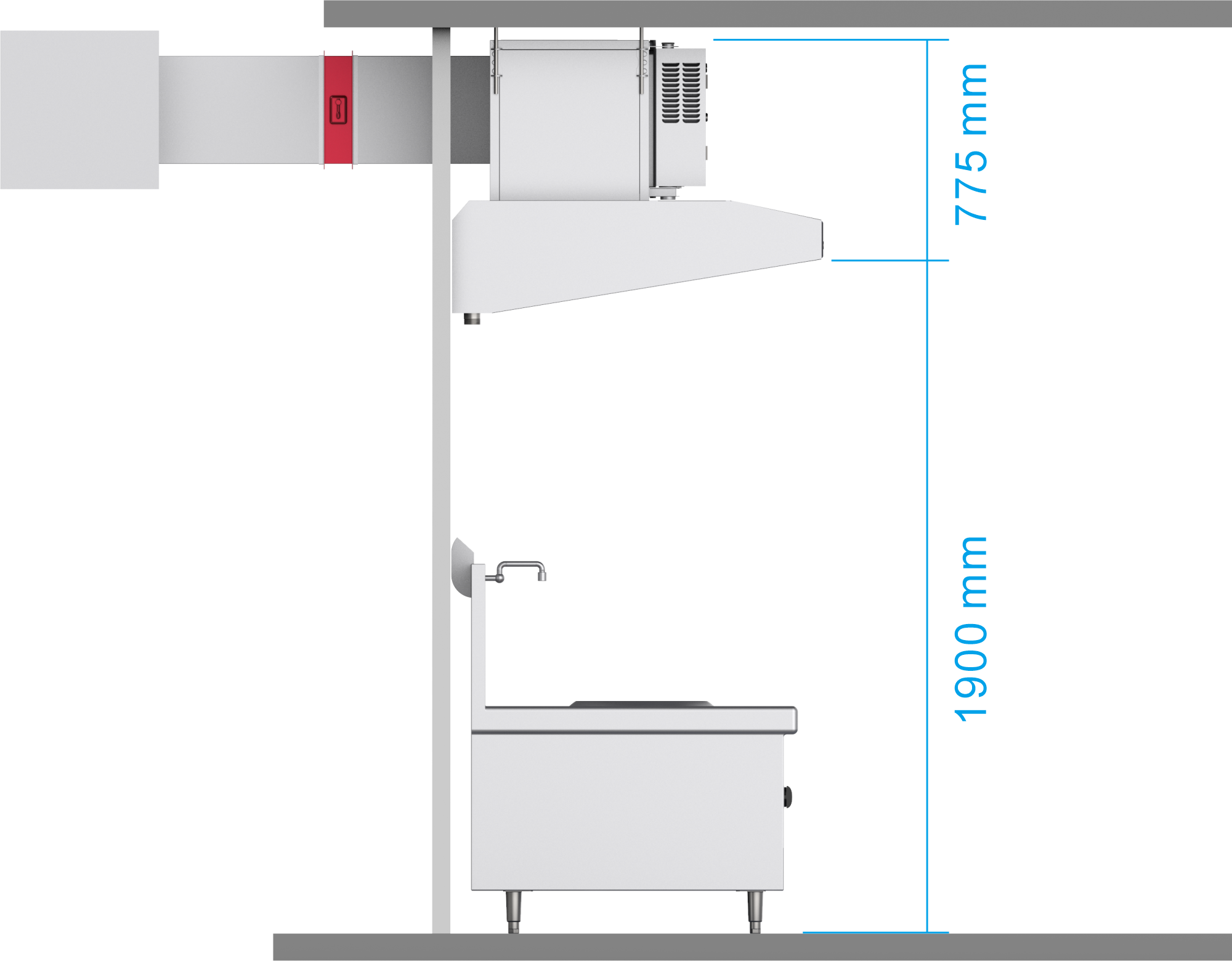

Installation drawing
Top Bending Ductwork
Top Erecting Ductwork
Rear Horizontal Ductwork
Front Horizontal Ductwork
