ESP Air Filtration & Heat Recovery for Stenter Machine in the Textile Industry
2024-12-24
Chapters of this article
How to Choose Electrostatic Precipitator for Textile Stenter Machine
When it comes to textile production, stenter machines play a crucial role in processing fabrics. However, they also generate emissions and consume significant energy. This article explains why air filtration and heat recovery systems are essential for stenter machines, focusing on practical solutions to make textile production cleaner and more cost-efficient.
What Is a Stenter Machine?

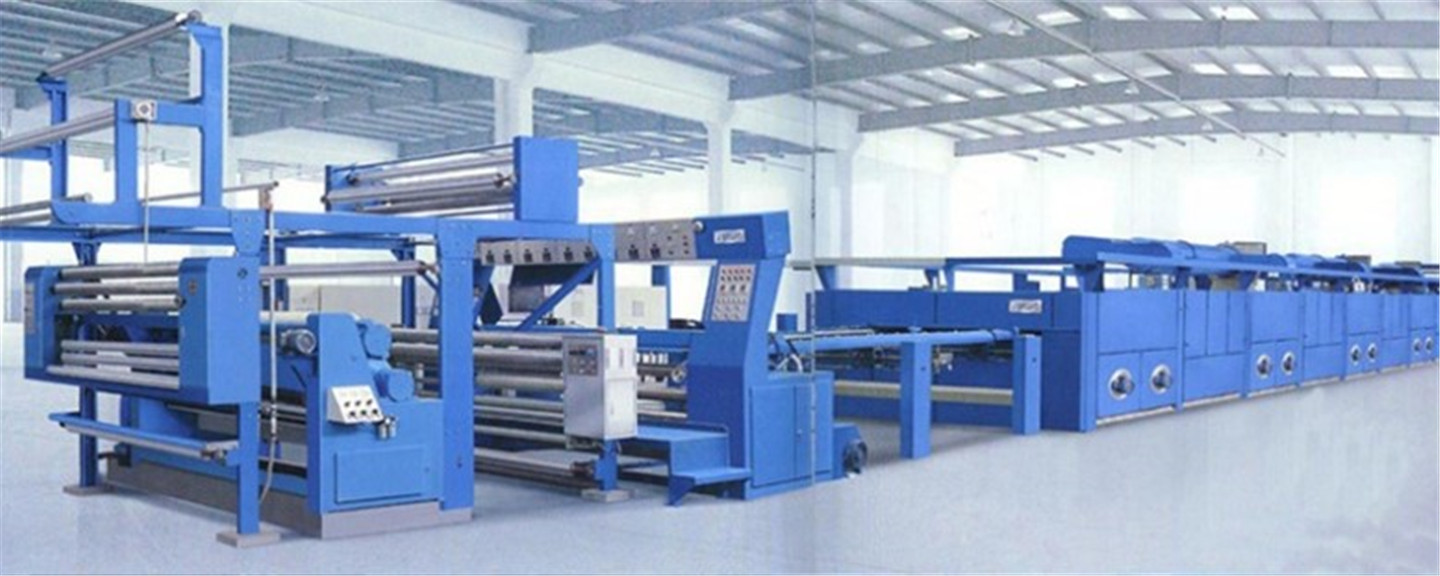

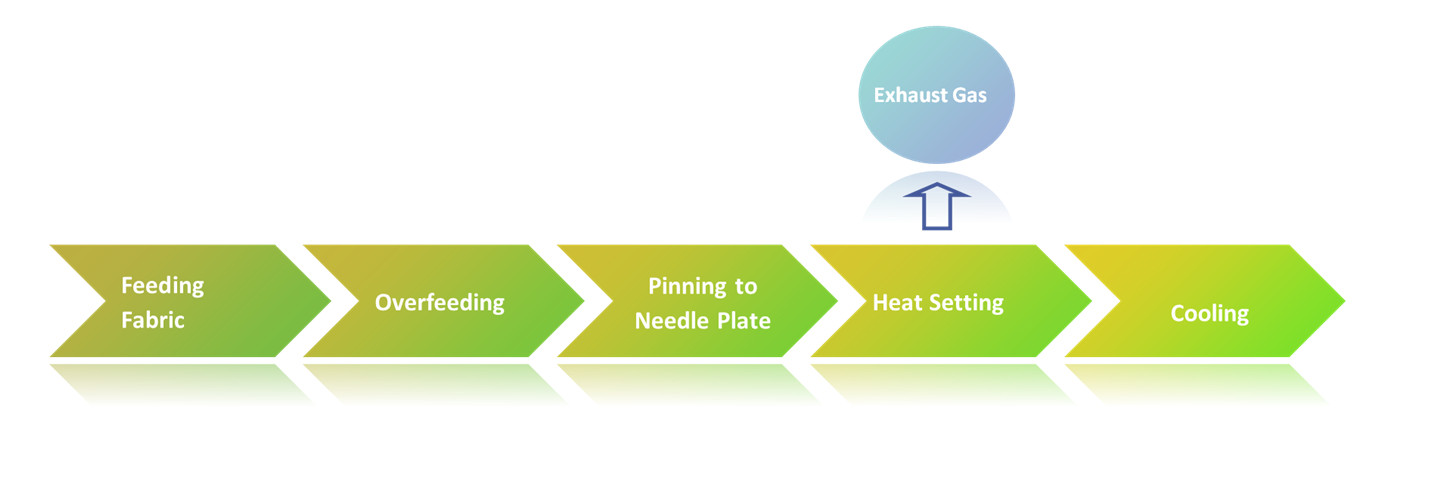

A stenter machine is a piece of equipment used in the textile industry to process fabrics. Its main purpose is to ensure fabrics are the correct width, smooth out wrinkles, and set the fabric’s properties, such as its size and texture. Heat-setting is a critical step in textile production where fabric is stretched under controlled tension and heated to a precise temperature. During this process, substances such as weaving oils and dyeing auxiliaries are applied to enhance the fabric’s performance. After maintaining the fabric at high temperature for a set period, it is rapidly cooled. This cooling solidifies the changes made to the fabric's microscopic structure, removes internal stress in the fibers, and gives the material a stable, durable shape that resists deformation.
Functions of a Stenter Machine
Drying: Removes moisture from the fabric.
Heat Setting: Locks in the fabric’s shape and properties.
Finishing: Ensures the fabric meets the desired specifications.
Types of Stenter Machines
Stenter machines come in different types depending on their heat source:
Gas-fired stenter machines: Use natural gas for heating.
Electric stenter machines: Powered by electricity.
Oil-heated stenter machines: Use thermal oil as the heat transfer medium.
What Are Stenter Emissions and Why Are They Harmful?
Heat-setting is a crucial step in textile manufacturing, involving stretching and heating fabric to set its shape and improve its performance. During this process, fabrics are treated with various chemicals, such as oils, softeners, and finishing agents, to enhance their properties. However, heat-setting machines, particularly stenter machines, release significant amounts of pollutants into the air. As fabrics are heated, they release a mixture of water vapor, solvents, and chemical residues. These emissions can contain a variety of harmful substances, including:
Composition of Stenter Emissions
Volatile Organic Compounds (VOCs): Released from fabric treatment chemicals.
Particulate Matter (PM): Tiny particles that can become airborne.
Fumes from Oils and Waxes: Result from heat-intensive processes.
Harm to Workers and the Environment
Health Risks:
Workers exposed to these emissions may suffer from respiratory issues, skin irritation, or long-term health problems.
Environmental Damage
Emissions contribute to air pollution and greenhouse gas buildup, harming the planet.
Why Is Heat Recovery Important to Stenter Machine?
Stenter machines use gas as a heat source to dry and set the shape of fabric. 1 The gas is burned to generate heat, which is then transferred to the fabric. This heat is essential for the drying process and for setting the desired shape and properties of the fabric. Stenter machines operate at high temperatures, often exceeding 200°C. This high-temperature operation consumes a lot of energy, leading to significant fuel costs.
Heat Recovery Benefits Textile Production
Energy Savings: Recycled heat reduces the need for additional fuel.
Cost Reduction: Lower energy bills mean lower production costs.
Sustainability: Reducing energy consumption helps lower the industry’s carbon footprint.
Air Filtration Methods for Stenter Emissions
Around the world, various air filtration methods are used to handle stenter emissions:
Bag Filters: Trap particles in a filter bag.
Cyclone Separators: Use centrifugal force to separate larger particles.
Wet Scrubbers: Use liquids to capture pollutants.
Electrostatic Precipitators (ESPs): Use electrical charges to remove fine particles and fumes.
Among these methods, Electrostatic Precipitators (ESPs) are considered the most efficient. They can capture fine particles and VOCs effectively, ensuring a cleaner environment both inside the factory and outdoors.
What Is an Electrostatic Precipitator (ESP)?
An electrostatic precipitator (ESP) is a device that removes particles from a gas stream, such as air. It uses a strong electric field to attract and capture tiny particles, making the air cleaner. ESPs are commonly used in industries to clean exhaust gases and improve air quality.
How Does ESP Handle Stenter Machine Emissions?

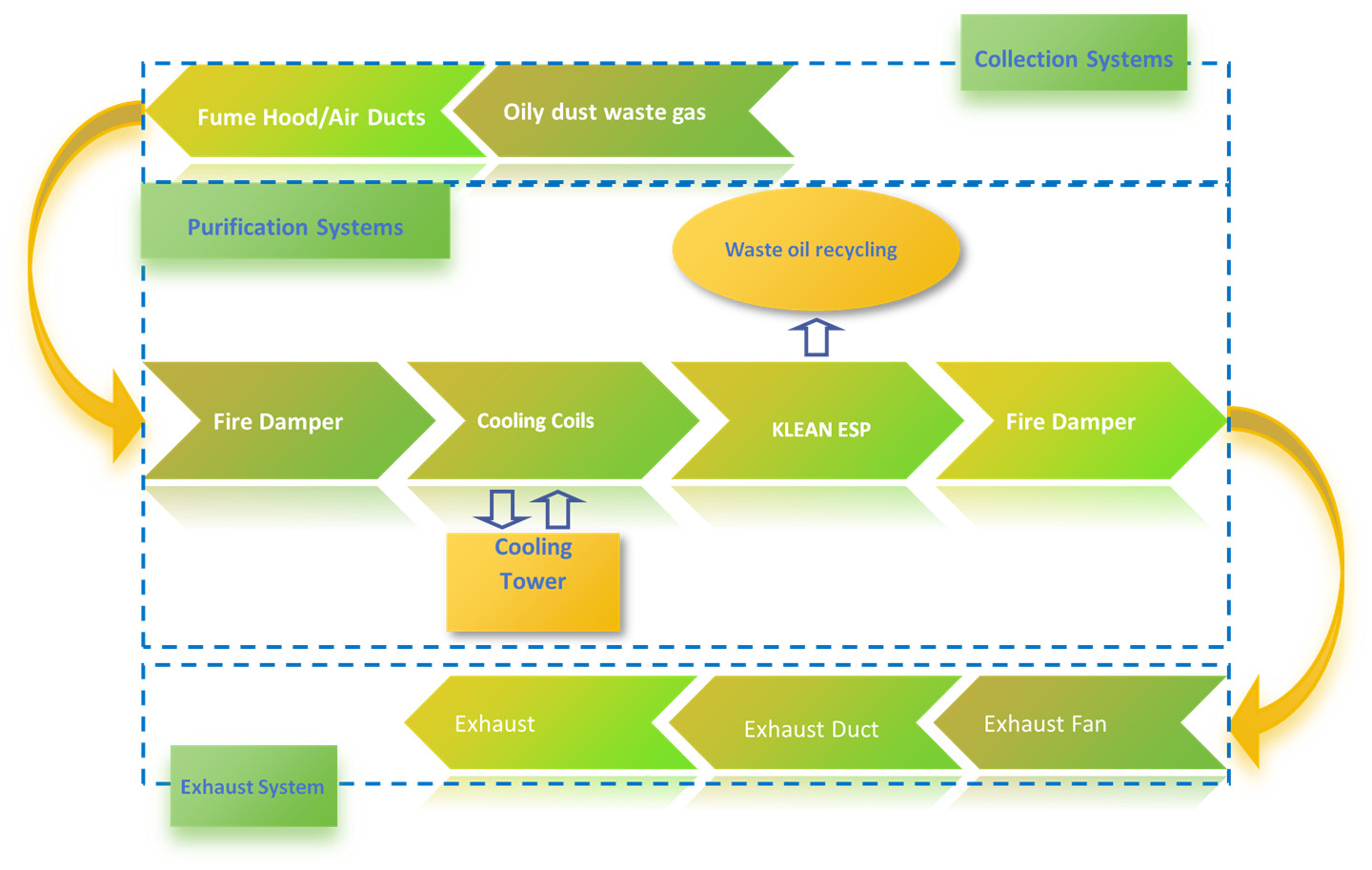

Collection and Cooling

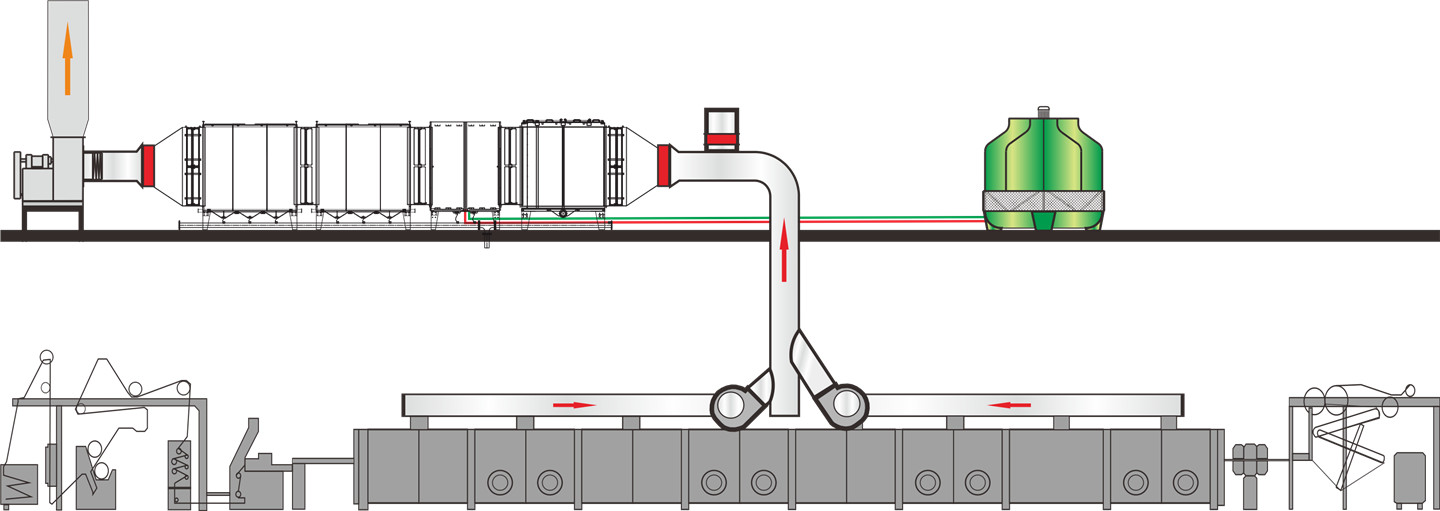

The initial step in the purification process involves capturing the hot, moisture-laden exhaust gases from the stenter machine. These gases, laden with oily fumes and other pollutants, are extracted using a robust smoke collection system. The captured gases are then channeled through a network of pipelines to a cooling unit.
Within the cooling unit, a continuous flow of water reduces the temperature of the exhaust gases to below 40°C. This temperature reduction triggers the condensation of pollutants, transforming them into larger, more easily removable oil mist particles.
Electrostatic Purification
The cooled exhaust gas is subsequently directed into an electrostatic precipitator (ESP). This high-efficiency air cleaning device utilizes a complex system of electrodes to create a strong electrostatic field. As the gas passes through the ESP, the oil mist particles become charged and are attracted to the collecting electrodes.
The collected oil, now in liquid form, drains to the bottom of the unit for safe disposal. Concurrently, the generation of ozone within the ESP helps to neutralize odors, further enhancing air quality.
Exhaust Discharge
After undergoing the purification process, the cleaned exhaust gas is expelled into the atmosphere through a fan system and chimney. This discharge is carefully monitored to ensure compliance with stringent environmental regulations.

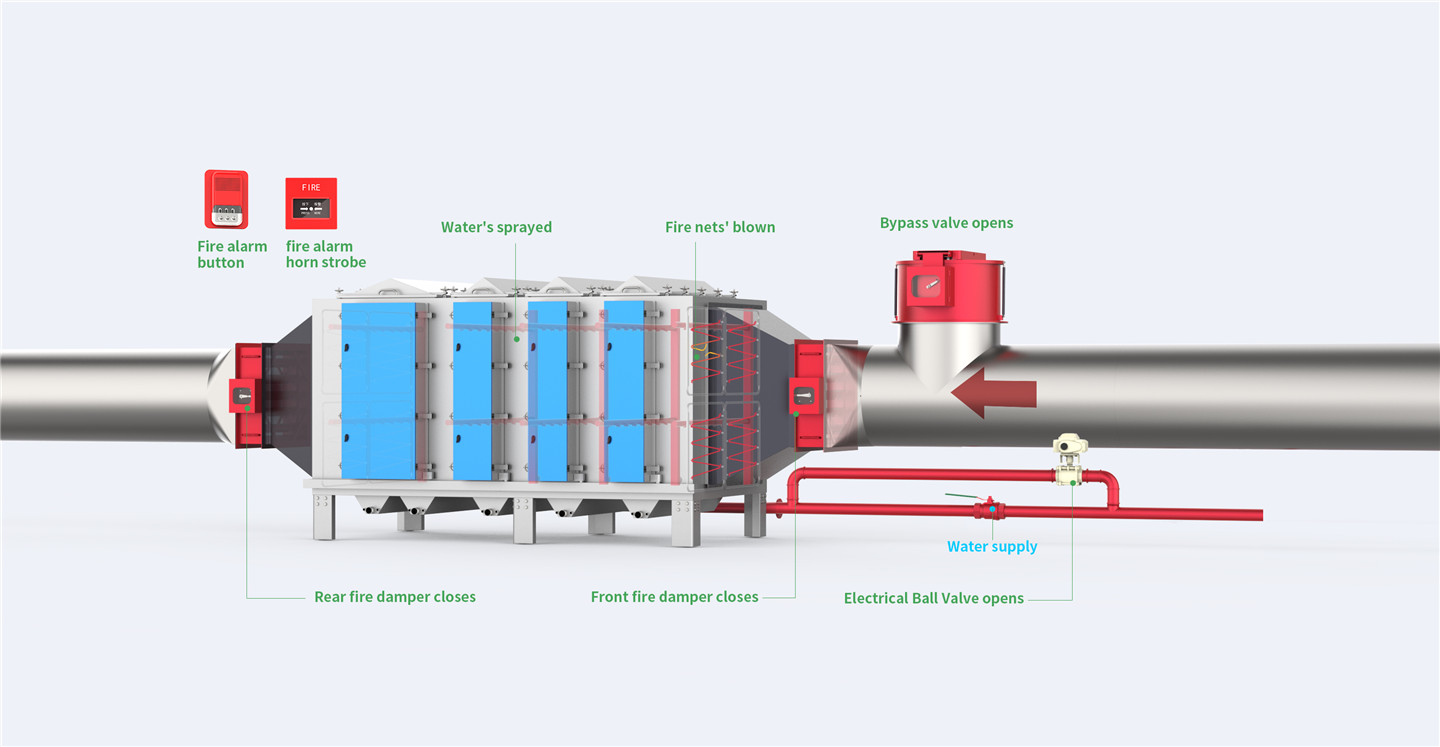

Fire Safety System
To prioritize safety, the purification system incorporates a sophisticated fire protection mechanism. This system is activated automatically in response to fire detection by sensors or thermal detection devices. The fire safety system initiates a sequence of actions:
Power Cut-off
The power supply to the electrostatic equipment is immediately interrupted to prevent further potential hazards.
Fire Damper Activation
Fire dampers are rapidly closed at both ends of the unit to contain the fire and restrict airflow.
Water Suppression
Motorized valves open, releasing water into the unit to extinguish the fire.
Alarm Activation
Audible and visual alarms are triggered to alert operators and initiate emergency response procedures.
By combining these elements, the purification system effectively manages stenter machine exhaust emissions, ensuring environmental compliance and operational safety.
How Heat Recovery System works for Stenter Machines

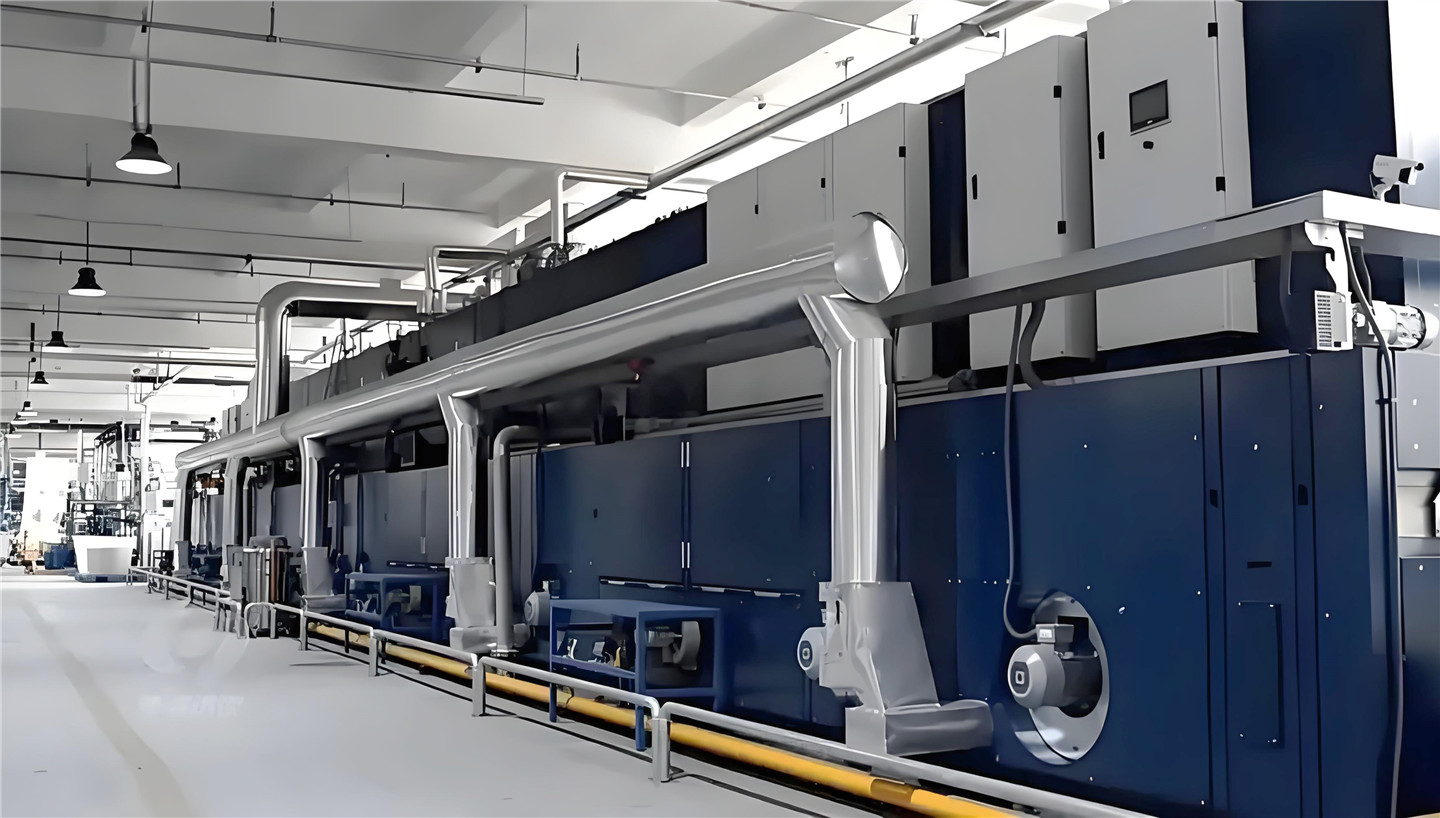

A common method to recycle heated air in stenter machine is achieved through a heat recovery system. This system captures the hot exhaust air from the drying process and transfers its heat energy to incoming fresh air. This preheated air can then be used to heat the fabric, reducing the energy consumption of the stenter machine. Heat recovery systems are often paired with ESPs to maximize efficiency. Heat recovery systems are designed to capture and reuse the waste heat generated by stenter machines. Here’s how they operate:
Among the strict heat recovery procedures, the critical steps are elaborated below:
1.Heat Capture: As the stenter machine processes fabric, it generates hot exhaust gases. These gases are directed through a heat exchanger.
2.Heat Transfer: Inside the heat exchanger, the thermal energy from the exhaust gases is transferred to a medium, such as air or water.
3.Energy Reuse: The heated medium is then used to preheat incoming air for the stenter machine or for other processes within the factory. This reduces the need for additional fuel.
4.Emission Cooling: By extracting heat, the exhaust gases are cooled before being released, making filtration systems like ESPs more efficient.

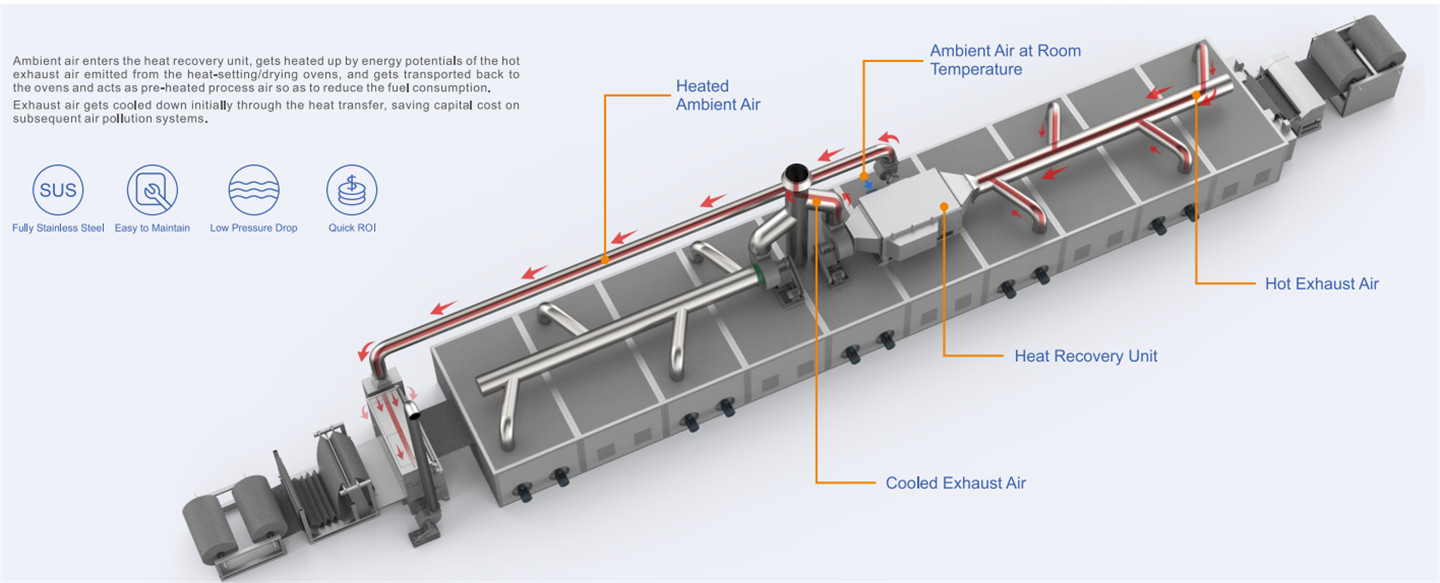

Kleanland Comprehensive ESP Filtration and Heat Recovery System
Kleanland provides cutting-edge solutions tailored to the needs of textile manufacturers. Their system seamlessly integrates advanced ESP technology with high-performance heat recovery, creating a comprehensive and reliable system for emission control and energy savings.

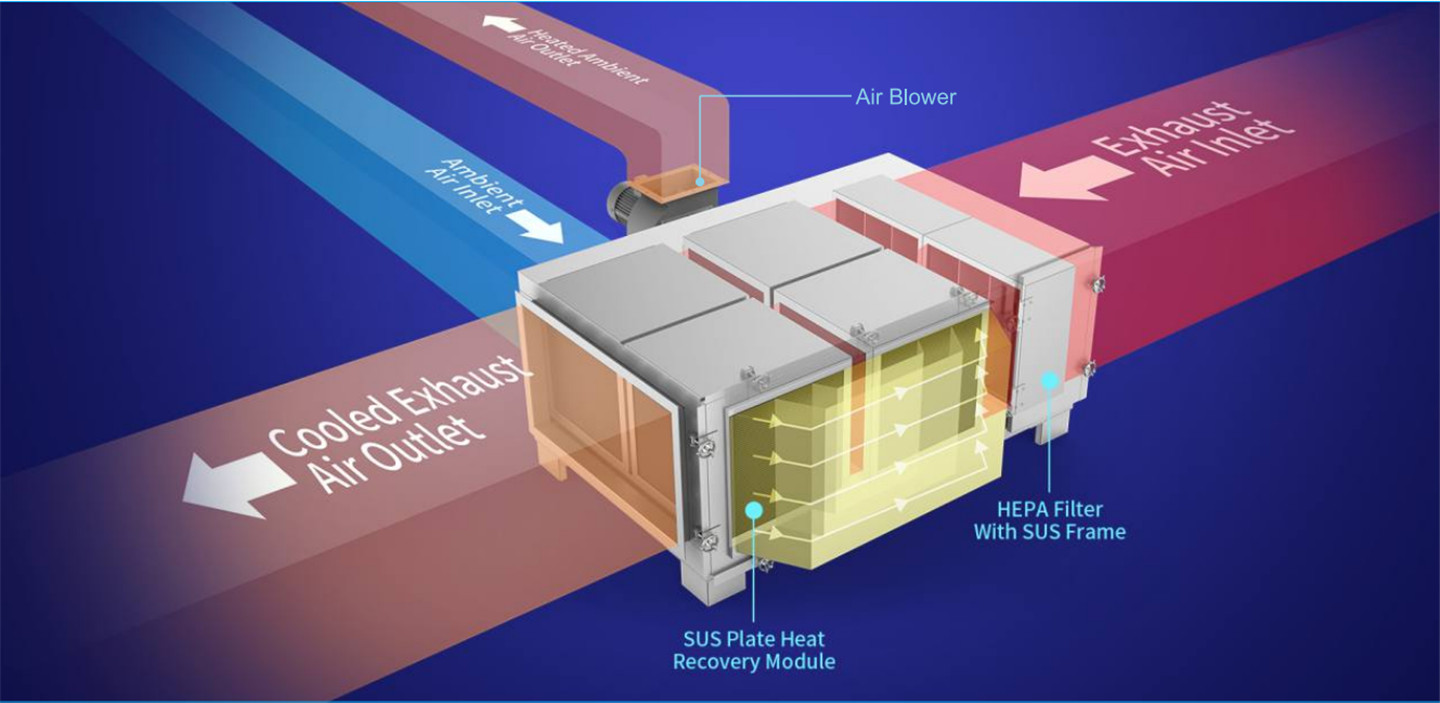

Kleanland’s industrial heat recovery system uses stainless steel heat exchange plates to create two separate channels. High-temperature exhaust gas and cold air flow orthogonally in these channels, transferring heat via the intermediate heat exchange plates. Waste heat from exhaust gases or industrial processes is efficiently recovered and reused for applications such as preheating raw materials, heating mediums, or providing warmth.

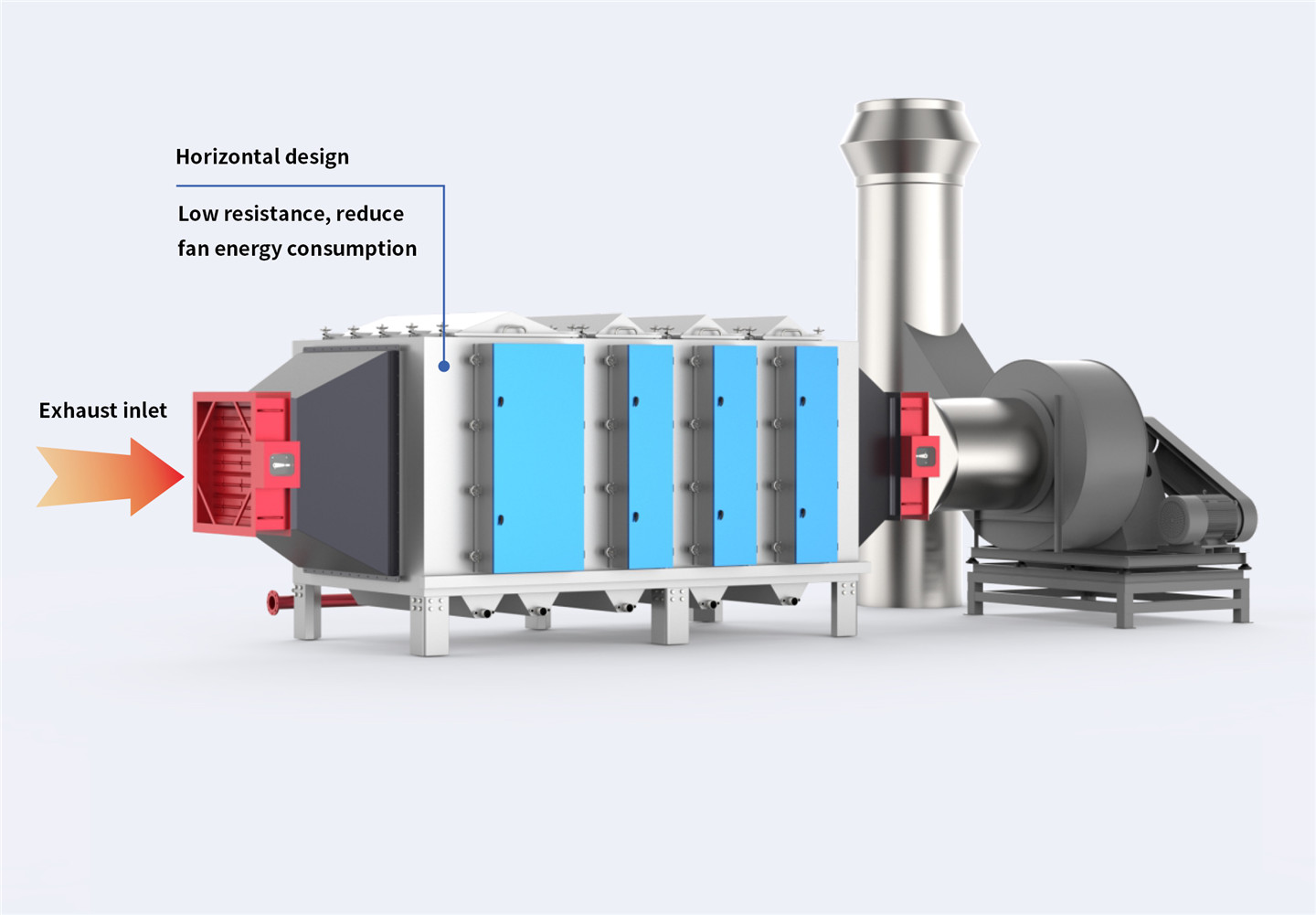

Horizontal low air resistance
Kleanland's horizontal ESP device employs a horizontal airflow design, which lowers resistance within the device. This reduction in resistance translates to decreased energy demands for the traction fan. As the fan's electricity consumption is a major contributor to the system's overall energy usage, this horizontal design offers substantial energy savings and reduced consumption.

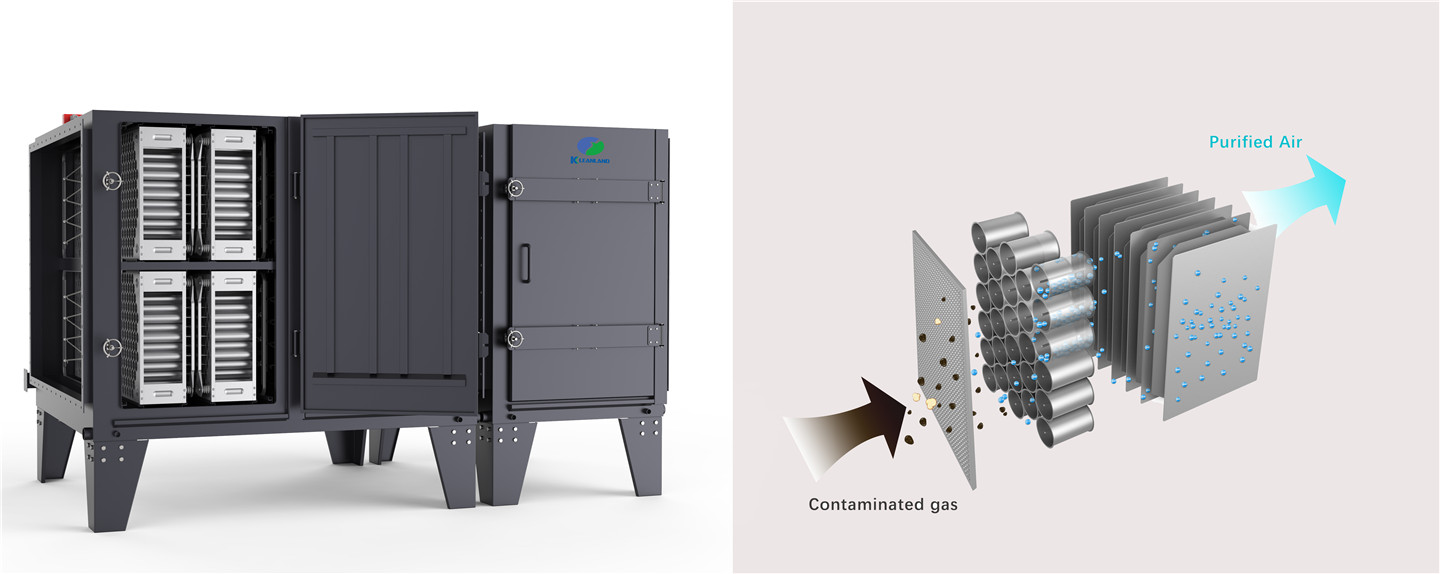

Wide Multi-Width ESP Cells

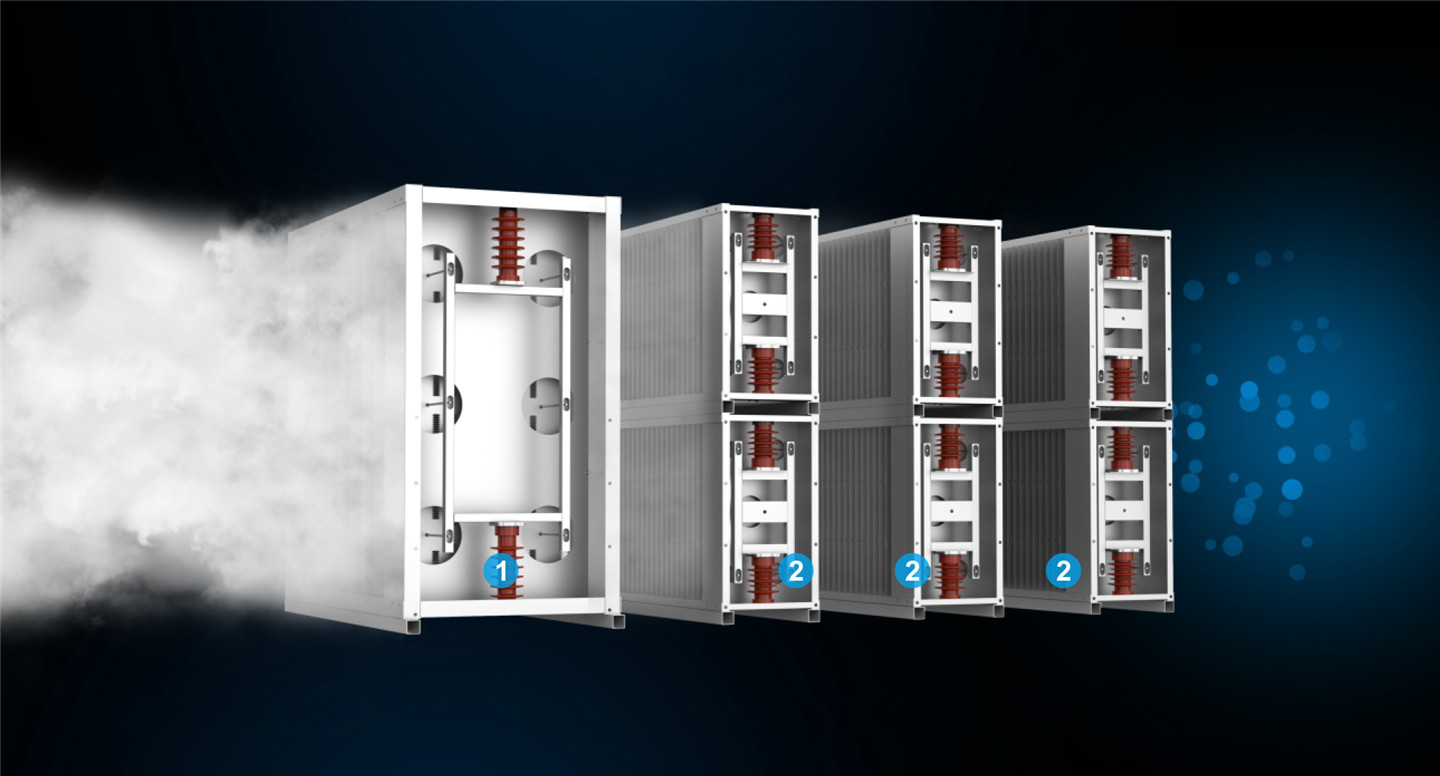

Kleanland's ESP filtration utilizes a multi-layer electrostatic cells to effectively capture particles of various sizes. Larger particles, smoke, and droplets are captured by the front layers, while smaller particles are charged and then trapped by the rear layers. By optimizing voltage levels, the system achieves high purification efficiency with low energy consumption.

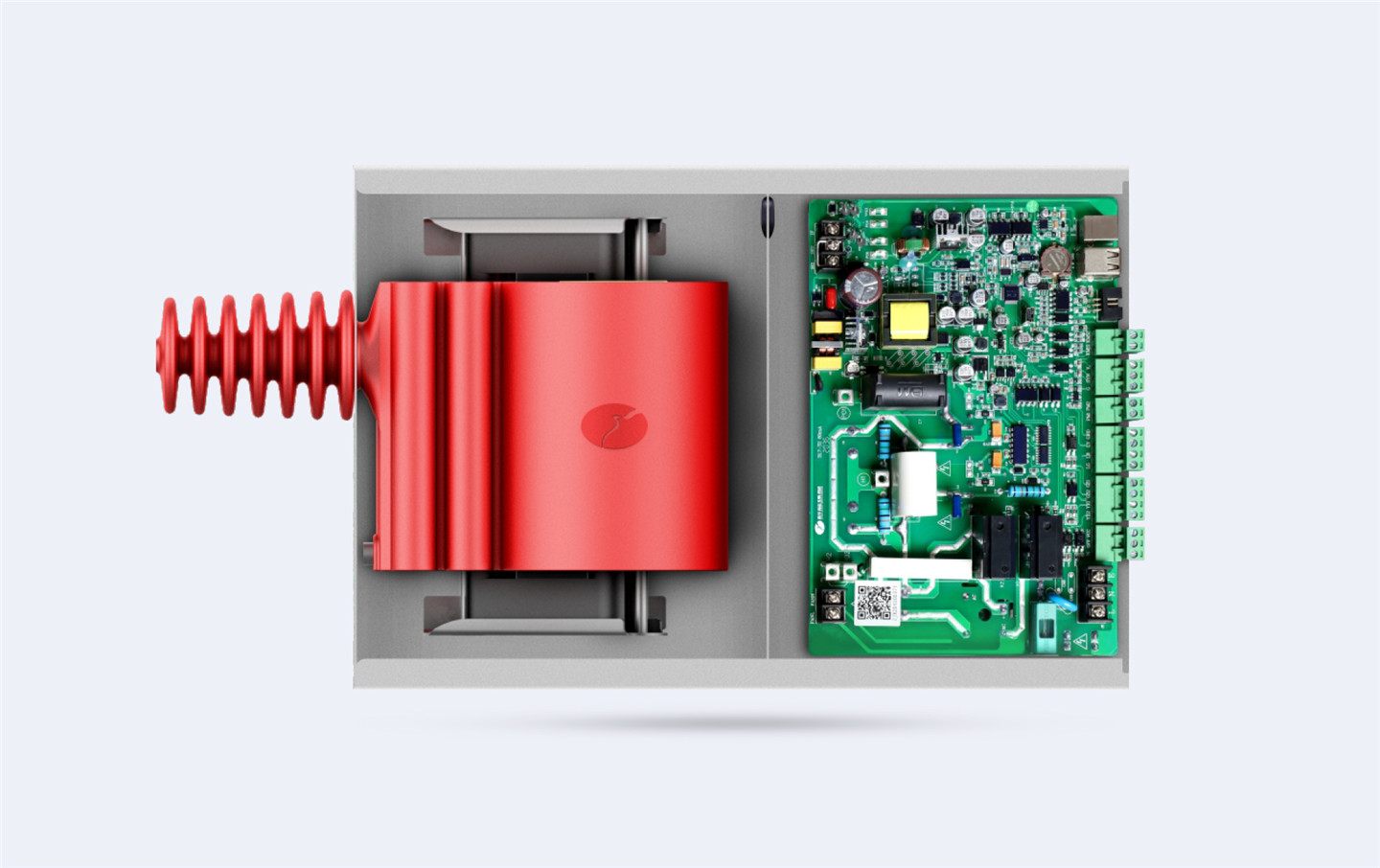

Manganese-Zinc Ferrite Constant-Current Rectifier
The power supply provides reliable, constant DC power through the use of high-quality, high-frequency components. The transformer, encapsulated in epoxy resin, offers excellent safety and durability. The manganese-zinc ferrite core is designed for optimal magnetic performance and mechanical strength. The compact, efficient design incorporates IoT technology, enabling remote management and customization of power supply settings.
Redundant Parallel Multi-Drive Power System
The redundant parallel power matrix enables precise, independent control of multiple electrostatic fields. This advanced system synchronizes current, incorporates soft-start mechanisms, and adjusts output voltage based on real-time conditions. The multi-power coordination technology offers flexible configurations and minimizes the impact of failures. Kleanland's 30 years of experience has resulted in high-performance, reliable electrostatic power supplies that reduce energy consumption by over 60% compared to traditional devices.
A Commitment to Safety
To mitigate fire risks associated with kitchen oil fumes and industrial exhaust gases, Kleanland Environmental has implemented a robust fire safety strategy. Key components of this strategy include:
Fusible fireproof mesh
Front and rear fire dampers
Automated water spray systems
Multiple fire suppression agents (e.g., nitrogen)
Automatic pressure relief valves
Manual fire suppression buttons
Audible and visual alarms
IoT-enabled alerts
Auto Steam Wash: Worry-Free Maintenance

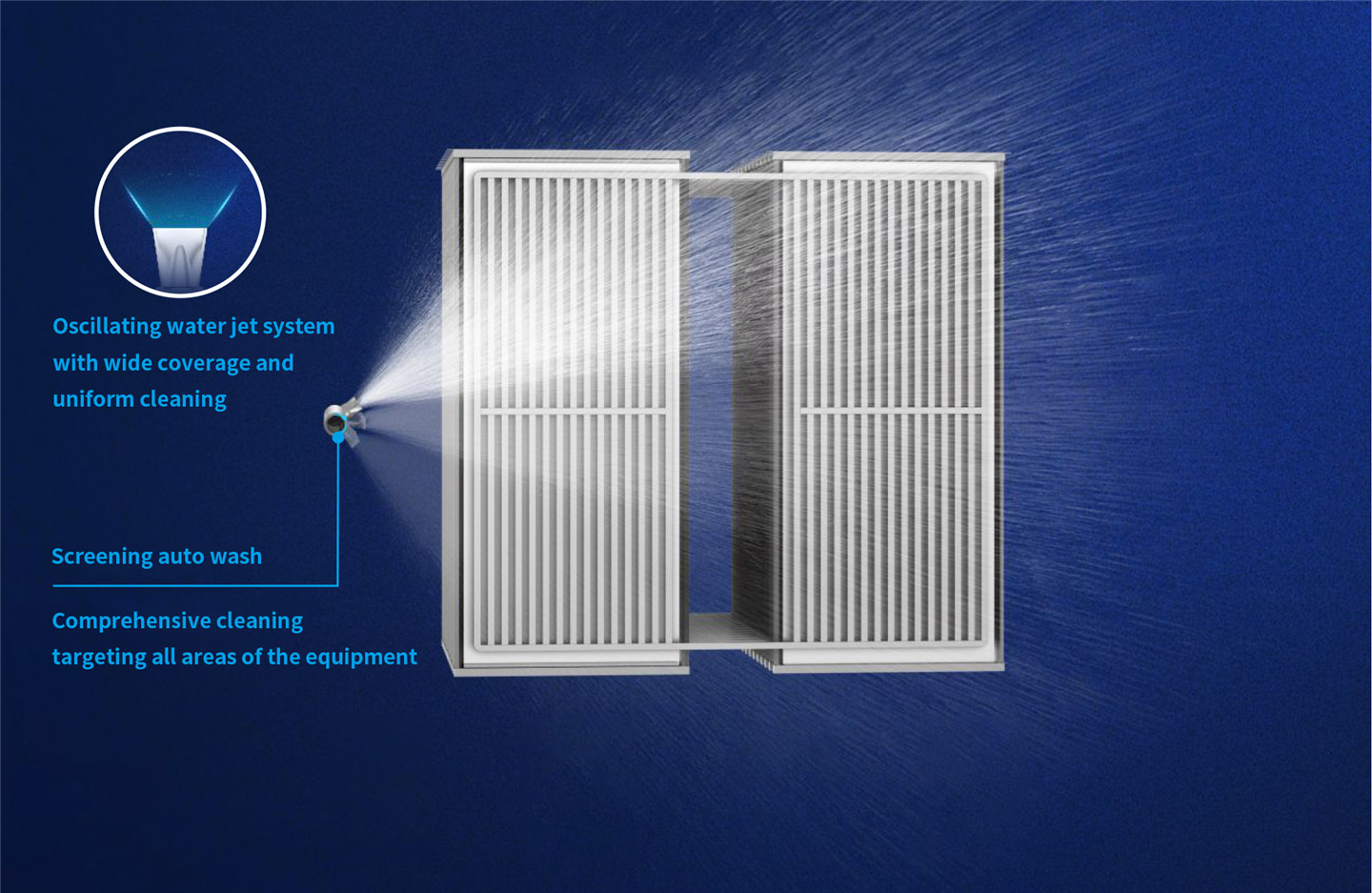

Electrostatic purification equipment adsorbs oil mist particles and solid dust particles in the electrostatic field grid. While gravity naturally removes most dirt, long-term operation can lead to the accumulation of stubborn stains, which can weaken the electrostatic adsorption ability. To address this, Kleanland Environmental has designed an industry-leading automatic cleaning solution. For electrostatic smoke hoods in kitchen environments, Kleanland offers a steam cleaning system. For all electrostatic equipment, optional cleaning solutions include steam cleaning, multi-dimensional spray cleaning, and alkaline water cleaning.
Background of Kleanland
As a pioneer in air purification technology, Kleanland has been at the forefront of innovation for decades. Our state-of-the-art ESP range hoods, in-duct ESPs, and industrial purifiers are trusted by customers worldwide. Our commitment to research and development, coupled with our experienced team, ensures we continue to deliver superior products and services.
Kleanland offers innovative solutions to help textile factories improve air quality and reduce costs. Our advanced technology and expert services ensure cleaner air for workers, a healthier environment, and lower energy bills.
We work closely with our clients to understand their specific needs and provide tailored waste heat recovery solutions. From initial planning to ongoing support, we're dedicated to delivering results.
By choosing Kleanland, you're choosing a sustainable future for your business and the planet. Let's work together to create a greener tomorrow.
